Product Specifications
| Prod Model: |
Pm-700W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
3000mmx1500mm 620X620mm |
| Motor: |
Japan Servo Motor |
| Max Cutting Depth: |
1-8mm |
| Input Power: |
16kw |
| Cooling System: |
Water Cooling |
| Power: |
500/700W |
| Table Repeat Positioning Accuracy: |
0.02mm |
| Max. Cutting Speed: |
20-50mm/S |
| Minimum Line Width: |
0.4 Mm |
| Warranty Period: |
12 Months |
Product Description
YAG Stainless Steel / Brass/ Aluminum / Iron/ Copper/ laser metal cutting machine
Product Features:
>>>Adopt Advanced Germany Technology The machine adopts the current most advanced laser technology from Germany. It can ensure that your machine is the most high tech in the world.
>>>Advanced Laser Optical System to Ensure Excellent Laser Beam QualityThe whole laser optical system adopts an enclosed structure, and Double-Xenon-lamp technology, can strongly improve the laser power and laser beam quality during cutting.
>>>Laser Path Pre-view & Pre-position Function Since laser beam is in-visible, so we adopt a "Red Light Pointer" to realize the laser path pre-view and Pre-position function. By adding the red light pointer, user can simulate the running path of the laser beam's track
So as to positioning the accurate cutting area in the material and achieve more convenient operation.
>>>Unique Mirrors and Lens Cooling Technology All of our mirrors and lens are designed to be cooled by water. This is the unique design which is first used by Perfect Laser. The water circulate can bring the heat of the mirror and lens during working, so it can prolong the lifetime of the mirror and lens and save your future operation cost.
>>>Professional Laser Cutting Software We use CNC 2012 latest version, with powerful editing function, Friendly interface, easy to Use. Can supports DXF, PLT, G-Code and many other graphs.
Application:

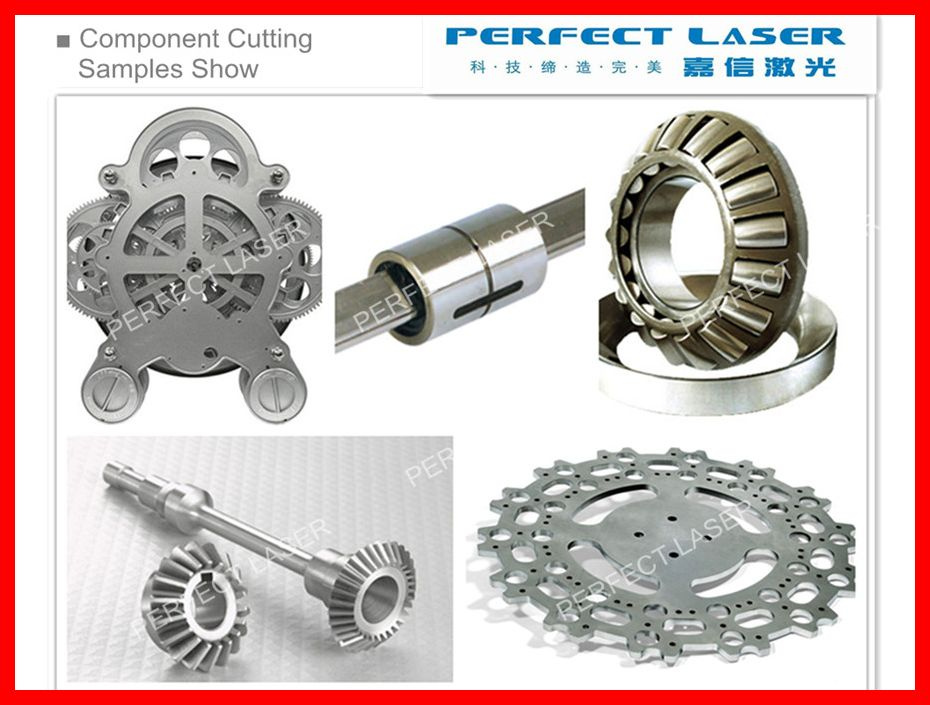

1. Applicable Materials: Stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, copper, brass, aluminum, gold, silver, titanium, metal sheets, metal plates, metal pipes, etc.
2. Applicable Industries: Sheet metal processing, metals ironware components and parts, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal sign letters, elevator panel cutting, etc.
After- Sale Service for Metal Cutting Machine:
1> All of our machine will be fullchecked by our quality control department before the shipment. We make sure that customers will be get good products from us. And all of our machine with a 12 months quality guarantee period.
2>We will enclose an"Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
Our Company (Perfect Laser Co., Ltd)
Perfect Laser's Mission: To offer outstanding technical platform & valuable products to our users.
The core running principle of Perfect Laser:
1> Chases for the persistently success in long-term basis.
2> Advocates & Builds multi- culture environment.
3>Occupies the leading position when enters into each field with good plan & fine operation.
Our Mission is to Improve Our Customers' Competitive Position in the Marketplace.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser!
The exact material you want to cut? (Stainless steel, carbon steel, mild steel, etc. )
The cutting depth on above materials? (max thickness, 3 mm, 5 mm, 7 mm, 15 mm...)
The working area you demand? (max dimension of material, width*length, 1500*3000 mm, ...)
Need more information please feel free to contact us-Perfect Laser! ---Right Now! !
|
Model |
PE-M500
-0606 |
PE-M500
-2513 |
PE-M500
-3015 |
PE-M700
-0606 |
PE-M700
-2513 |
PE-M700
-3015 |
|
Working Area (mm) |
620x620 |
2500x1300 |
3000x 500 |
620x620 |
2500x1300 |
3000x1500 |
|
Max. Output Power |
500w |
700w |
|
Max. cutting thickness |
6-7mm Mild Steel |
7-8mm Mild Steel |
|
Best cutting thickness |
4-5mm Mild Steel |
5-6mm Mild Steel |
|
Actuating Medium |
Nd+3:YAG |
|
Input Power |
16KW |
|
Single Impulse |
10J |
|
Laser Wave length |
1064nm |
|
Impulse Width |
0.2~10 ms |
|
Impulse Frequency |
0~300 Hz |
|
Max. Cutting Speed |
20-50mm/s(1mm Stainless Steel) |
|
Minimum Line Width |
0.4 mm |
|
Power Stability |
< ±3% |
|
Table Axial Positioning Accuracy |
0.05 mm |
|
Table-Driven System |
Japan Panasonic Servo Motor Driver |
|
Focus System |
Germany Dynamic Auto Focus System |
|
Table Repeat Positioning Accuracy |
0.02 mm |
|
Laser Power Supply |
Dedicated high frequency pulsed laser cutting power supply |
|
Laser Head & Focus System |
Include 45° Reflect Mirror, Focus Lens |
|
Laser Optical Bridge |
Include Laser beam expander, Half reflection Lens, Full reflection Lens, Laser Cavity, Red light. |
|
XY Working Table |
High-precision Ball Screw Table with dynamic auto-focus function. |
|
Water cooling System |
External 5Kw water cycle cooling system |
|
PC controlling system |
Professional Cutting Software installed |
|
Professional Software |
CNC Numerical Control Software, PLT,DXF,G-Code SUPPORT |
