Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd. >> Latest Technology HD P4 Indoor LED Display Full Color. LED Display Manufacturer

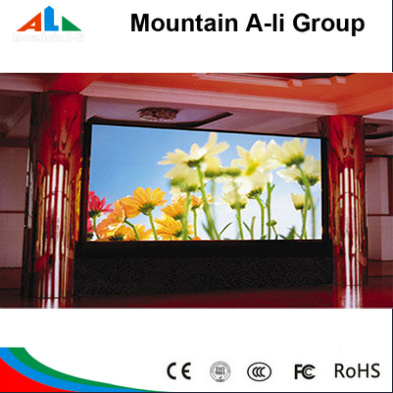

Latest Technology HD P4 Indoor LED Display Full Color. LED Display Manufacturer

Latest Technology HD P4 Indoor LED Display Full Color. LED Display Manufacturer
Supplier: Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price: US $ 900-990/Square Meter
Min Order: 1/Square Meter
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: P4 Indoor Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:256mm*128mm: Cabiet Size:512mm*512mm
Tube Chip Color: Full Color
IP Rating: IP65
Display Function: Video Display
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC,ISO9001
Pixel Pitch: 4mm
Pixel Configuration: RGB 3in1
Average Power Consumption: 85
Pixel Density: 62500m2

Product Description

HD P4 Indoor Full Color LED  Display For Advertising



The specifications of module

ItemParameter
Product model P4-16S
Module size256mm*128mm
 Pixel pitch 4mm
 Pixel density  62500dots/m2
Pixel configurationsmd 3in1
 Module resolution64dots(W)*32dots(H)
Maximum power consumption18W
 Module thickness13.07mm
Module weight0.18kg
Driving methodConstant current driving
Scan mode1/16 scan
Interface typeHUB75-A
Brightness  ≥ 1500cd/m2
The specifications of cabinet

Cabinet size512mm*512mm
 Module quantity8pcs
 Power supply5V/40A *2pcs
Cabinet resolution  128*128dots
 Optimal viewing distance4m ~ 20m
Optimal viewing angle160°(W) 120°(H)
  System operating humility10%-95%
The specifications of power supply

Operating voltageAC220V±10%
 Average power consumption85W/ m2
 Maximum power consumption≤ 160W/ m2
Current ≤20mA(single LED)
The specifications of control system
ComputerPentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization control
The specifications of the main technical parameters

 Driving deviceConstant current driving
 Refresh rate≥400Hz
 Grey scaleRGB each 256 grade, can display 16.7M colors
MTBF≥9000hours
Power switchAutomatic switch
Display mode800*600/1024*768
Indoor features:
1. SMD3-IN-1 technology are used for indoor LED display
2. Wide view angle: 160 in horizonal and 120 in vertical
3. Special design and advanced SMT technology improves the heat dissipation
4. With high fresh rate controller, guarantee that no scan line when taking photos
5. Regular shape and special shape(such as curve, round) can be designed
6. Easy for assembling and connection with the connector added
7. High color uniformity and clear image can bring you a vivid audio visual effect
8. Both front access and rear access areavailable
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
