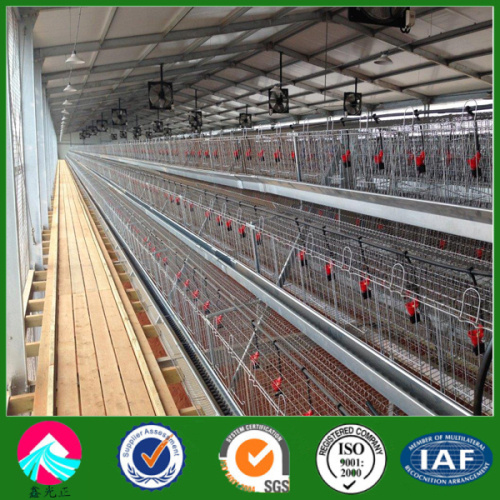

Layer Poultry Farm Machine and Chicken Cage Layer House

Name: Layer Poultry Farm Machine and Chicken Cage Layer House
Brand: china-manufacturer-directory.com
SKU: 697359302
Availability: InStock
Rating: 4.3 (80 reviews)

Supplier:	Qingdao Xinguangzheng Machinery Equipment Group Co., Ltd.
Price:	US $ 80/Square Meter
Min Order:	200/Square Meter
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	poultry house-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure Type:	Portal, Truss, Grid Structure
Design Load:	Wind Speed, Snow Load, Earthquake etc
Steel Grade:	Q235B
Strucuture Anti Rust Grade:	Hot DIP Galvanized
Roof And Wall:	Sandwich Panel with Insulation
Installation:	Engineer Guide Install or Send Installation Team
Size:	Length*10-16m
Equipment:	Full Automatic System to Be Designed
Insulation:	EPS, Glassfiber, PU Material
Floor:	Single/Double Floor
Material:	Steel Structure
Usage:	Popultry House
Certification:	BV
Customized:	Customized

Product Description

Size: 103*12*2.3m
Usage: Broiler house
Quantity:6 sheds with equipment
Steel frame: C section steel for portal frame
Roof and wall: Double sheet jointed with 100mm fiber glass insulation
Surface: Hot dip galvanized
Foundation: Anchor bolt
Installation: Sending engineer to guide the erection
Equipment: Auto feeding system, auto drinking system, environment control, cooling pad, air inlets, Fans, heating system, fog system.
Location: Sudan

The advantage of C section steel frame:
Easy construction, low price. Inner celling structure fits intake air from side wall thereby ensuring the breeding demands; intake air from the bottom of side wall which makes preheating spece to the poultry house before the cold air enters; avoiding the cold air enters the poultry house from windows directly in order to prevent air windows are frozen; avoiding the temperature of indoor changes quickly in order to make stress and save haeting cost.
Air inlet equably distribute two sides of walls of poultry house. The opening angle of window is suitable which ensures the wind speed of entrance, in order to make outside cold air steadily rise when it enter the house, and mix it with inner hot air. then the air will flow to chickens, transporting fresh oxygen gas, excluding ammonia gas carbon dioxide. The temperature of every part in the house is uniform, resolving the contradiction between air quality and temperature, increasing efficency of ventilation.
Projects

Detailed description of Steel structure Chicken house
Dimension	Length	customer designed
	Width	customer designed
	Height	customer designed
Weather condition	Wind speed	m/s or km/h
	Snow load	kg/m2
	Earthquake	degree
Life span	25-50 years
Steel Frame	Main Frame	Q345B & Q235
	Secondary Frame	Q235 C or Z section Purlin, Round Bar
	Bracing	Angle brace, Welded Pipe
Maintenance Frame	Wall & Roof cladding	Single color corrugated steel sheet
		EPS, Glass wool, Rockwool, PU, etc sandwich panel
		Steel sheet THK. :0.3-0.7mm
		Heat Insulation THK.:50-150mm
Surface	Panited surface	Antirust paint,total thickness: 100-120um; Warranty period: 18-20 years
	Hot dip galvanized surface	65,86um; Warranty period: 45-50 years
Accessories	Door	Sliding door;PVC door
	Drainage system
Equipment	Feeding system	Feeder motor connect with feeder hopper
	Nipple drinker system
	Tunnel ventilation and heating system
	Curtain system: automatic curtain machine
	Suspension system with ceiling winch
	Ventilation: external damper fan with cone
Delivery time	20-25days
Shipment	steel frame is packed in 40'OT container, Maintenance frame and others are packed in 40'GP or 40'HQ

Qingdao Xinguangzheng Group

BASIC INFO

Covers an area of 133, 000 square meters, was founded in 1996, specialized in various of steel structure building, jointly design, manufacture, export and erection of Industrial, Commercial and residential and Agriculture uses. As one of the best company in North China, had aleady exported to more than 90 countries with government and privite projects.

SERVICE

Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture, deliver to installation and after-service.

QUALITY

Raw material reserves: Steel bought from major steel mill

Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC continuous mode of production lines etc

Strictly quality control: Manufacture strictly according to drawings, Inspection every link, Pre assembled before delivery.

DESIGN & DELIVERY & PACKING

Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.

With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.

Packed in container by sea or by train, with stable package for no damage during transpotation.

CERTIFICATE

We have ISO9001: 2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
