Product Specifications
Prod Model: |
JFW0912 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
2"---8": |
PVC Material |
Irrigation Use: |
Farm Use |
High Working Pressure: |
One Step Producing Style |
Two Steps Producing Style: |
with Lines |
High Borsting Pressure: |
Nylon Fiber Reinforced |
Product Description

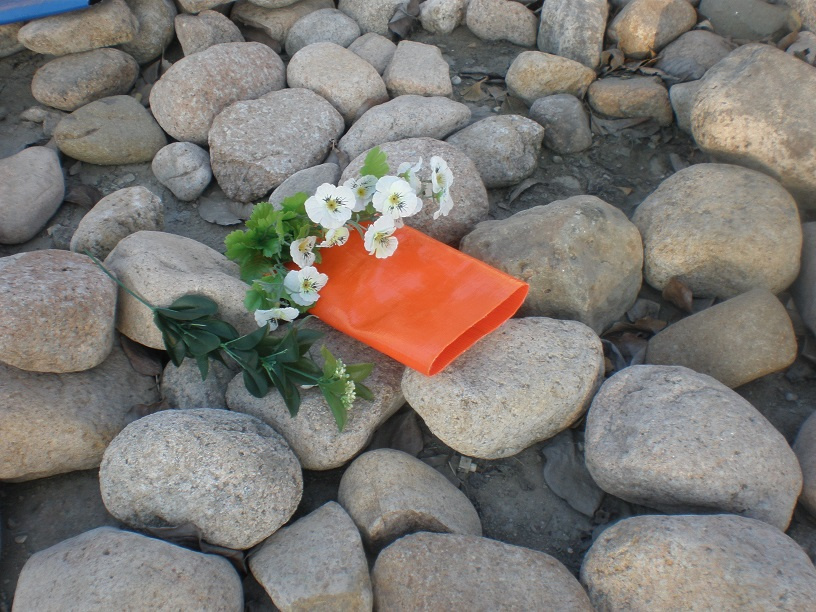

Agriculture irrigation layflat hose
Model: JFW0912
Size: Inner 50MM-300mm
Thickness: 1.6MM-3.0mm
Length: 100 Meters, or produce in according with buyer requirement.
Working pressure: 3-10Bar
Bursting pressure: 25 bar
Color: Inner sky blue+ outter sky blue
Or produce in according with buyer requirement.
Packaging: 100 meters per roll with weave bag packaging. Or packing with carton.
#The smooth inner layer allows for excellent water flow characteristics.
#The braiding ensures that the hose remains flexible and hard wearing without bursting in normal use.
# The UV resistant outer layer protects the hose from wear.
#The hosepipe can be measured against the following qualities:
Durability
Flexibility
Kink - resistance
Crush - resistance
Burst pressure
Weight
Appliction: The layflat hose mainly used for agriculture irrigation,building drain, mine dewatering.
Size | Meas.(MM) | Tolerance | W | W.P. | B.P(Bar) | Maxi. diameter swell at WP | M/Roll |
Inch | O.D. | MM | Kgs | Bar |
| % |
|
1 | 25 | 0/+1 | 0.15 | 8 | 24 | 6 | 100 |
1-1/4 | 32 | 0/+1 | 0.17 | 8 | 24 | 6 | 100 |
1-1/2 | 38 | 0/+1 | 0.20 | 8 | 23 | 6 | 100 |
2 | 50 | 0/+1 | 0.22 | 6 | 18 | 6 | 100 |
2 | 50 | 0/+1 | 0.28 | 8 | 23 | 6 | 100 |
2-1/2 | 64 | 0/+1 | 0.3 | 6 | 18 | 6 | 100 |
64 | 0/+1 | 0.38 | 8 | 23 | 6 | 100 |
3 | 75 | 0/+1 | 0.4 | 4 | 13 | 6 | 100 |
75 | 0/+1 | 0.46 | 5 | 15 | 6 | 100 |
75 | 0/+1 | 0.5 | 6 | 18 | 6 | 100 |
3-1/2 | 90 | 0/+1 | 0.55 | 5 | 15 | 6 | 50 |
4 | 102 | 0/+1 | 0.62 | 6 | 18 | 6 | 50 |
5 | 127 | 0+1 | 0.75 | 5 | 15 | 6 | 50 |
6 | 152 | 0/+1 | 0.90 | 5 | 15 | 6 | 50 |
8 | 200 | 0/+1 | 1.60 | 5 | 15 | 6 | 40 |
PandaView Lawn & Garden (Qingdao) Ltd. was set up in December of 2005, Owned by Jianfeng Group Co. (the public company) who is one of biggest enterprises in China.
The main products categories what we running include: Garden rattan furniture and PVC HOSE. The group operates two responsible factories. One is professional PVC HOSE factory that local in weifang, shandong province(pandaview owned), and a Shandong local factory mainly manufacture garden furniture(joint venture).
We retain a strong research and development that include quality and products designing, we know that quality, produce cost and design are key components to each products success, so we will put more energy into exploration to meet the specific needs of clients in worldwide market that we serve.
We strictly follow the principles of the ISO9001: 2000 quality control and management system, the mills have also set up testing center to control and assure optimum quality for all products we sale. The parts of these products have passed TUV/GS, CE, EMC and EPA, RoHS, ISO etc.
To insure the client's confidence in our products, we offer a three years limited warranty at least on most of our products;
We have been developing gardening articles for many years. The goal of ours is to developing and providing first class products for people's lawn& garden using the latest advances in technology and production under our two existing brands: PandaView and Park in. And advocating reasonable way to care their landscape and garden.
