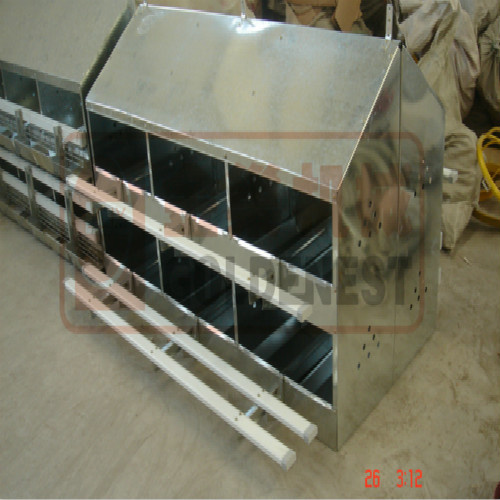

Laying Nest for Layer and Breeder Egg Production (JCJX-205)

Product Specifications

Prod Model:	JCJX-205
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	30-Year Limited Warranty
Life Duration:	30 Years
Capacity For Layer:	40
Material Grade:	I
Quality Grade:	a
Egg Slide:	Belt
Material Optional:	Galvanized Steel
Power Source:	Electric
Type:	Automatic
Usage:	Egg Production

Product Description

Laying nest for layer and breeder egg production(JCJX-205)
1. Performance

a. Nest with large space, simultaneously accommodate 5.5-7 chicken to lay eggs.
b. Soft and comfortable nest bottom, breathable and smooth to create the proper temperature for the female breeder.
c. A red curtain front of the nest ,ensuring internal flocks free from outside interference.
d. Square hole conveyor belt and ensure the eggs delivered stable.
e. Less routine maintenance ,simple and reliable .

2. Advantage

a. Auto nest is the modern equipment to automatically collect eggs, the functions is to deliver the clean eggs to egg-collecting table smoothly by convey or belt, reducing labor costs ,improving production efficiency, lowering egg breakage rate, reducing floor eggs.
b. Providing a clean and high- quality eggs .
c. Good quality plates , plates thickness: 0.5mm.galvanizing thickness 275g/m2, Solid compact body structure , durable and easy assemble. It fit for the big floor system chicken house.


3. Description

a. Automatic nest is for floor system and with certain quantity of pass .the layout according to the demand of the clients which can meet low-high-low mode and high-low-high mode.
b. The both side of the support wall with many round hole to block the light and ensuring the good ventilation in the nest to create the comfortable environment for the female breeder, reducing laying eggs outside the nest. There is rotational stand on the top of the nest to avoid breeder stand on it.

8. Automatic Egg Collecting System  --Double Side type
Product No.	Goods Description			Spectfication				Quantity	Unit	Unit Price($)		TOTAL($)
80001	Eggs transport and collect System			Egg middle transport belt, Auto egg collect table				2	Set	715.0		1430.0
80002	Nest Houses			2m/Set , double side , with support legs				72	Set	505.0		36360.0
80003	NestBed Overturn System			Control the bottom raise and down				4	Set	545.0		2180.0
80004	Electric control box							2	Set	105.0		210.0
80005	egg nest line channel			Every line remove a set egg nest room				2	Set	-260.0		-520.0
	Install 2 line, every line 36 Set								One House Ex-Work Total:			39660.0
