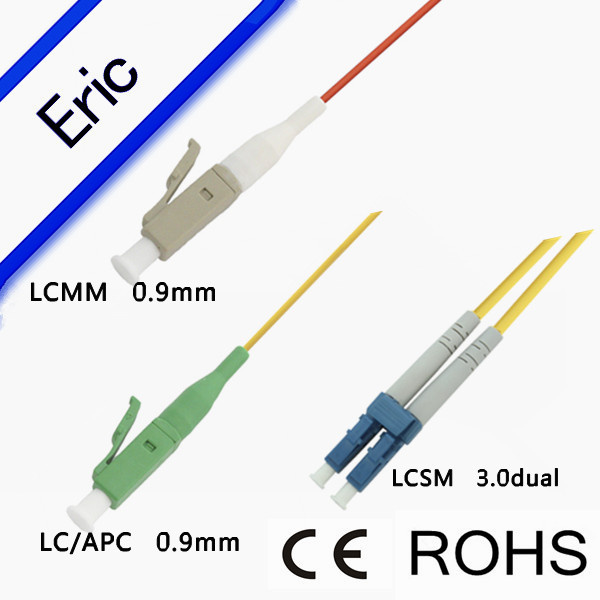

LC/APC optical fiber patch cord
Description
Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. ST/ST, SC/SC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
Application
1. Gigabit Ethernet
2. Active device termination
3. Telecommunication networks
4. Video; Multimedia; CATV
5. Premise installations
6. Local area networks
Descriptions |
SM(PC) |
SM(UPC) |
SM(APC) |
MM(PC) |
Insertion loss |
<0.3dB |
≤0.2dB |
<0.3dB |
<0.3dB |
Return loss |
≥50dB |
≥50dB |
≥65dB |
≥35dB |
Repeatability |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
Durability |
<0.1dB typical change,1000 mating |
Interchangeability |
≤0.2dB |
Vibration |
≤0.2dB |
Operating Temperature |
- 20°C ~ + 70°C |
Storage Temperature |
- 40°C ~ + 80°C |
Cable Diameter |
3.0mm, 2.0mm, 0.9mm |
