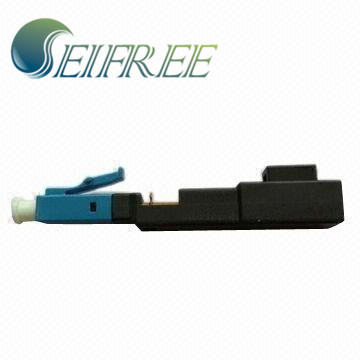

LC Field Assembly Optical Fiber Quick Connector

Name: LC Field Assembly Optical Fiber Quick Connector
Brand: china-manufacturer-directory.com
SKU: 697518812
Availability: InStock
Rating: 4.8 (142 reviews)

Supplier:	Wuhan Seifree Technology Co., Ltd.
Price:	US $ 2-4/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Embedded Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G52D, G657A
Transmission Medium:	Single-Mode
Structure:	SC
Ferrule Endface:	APC
Number Of Cores:	Single-Core

Product Description

Fast Connector For Outdoor

Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G652D/G657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
