Product Specifications
| Prod Model: |
LC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Accuracy: |
≤±0.1% |
| Measuring Media: |
Liquid |
| Principle: |
Variable Area Type |
| Size: |
DN50-100 |
Product Description

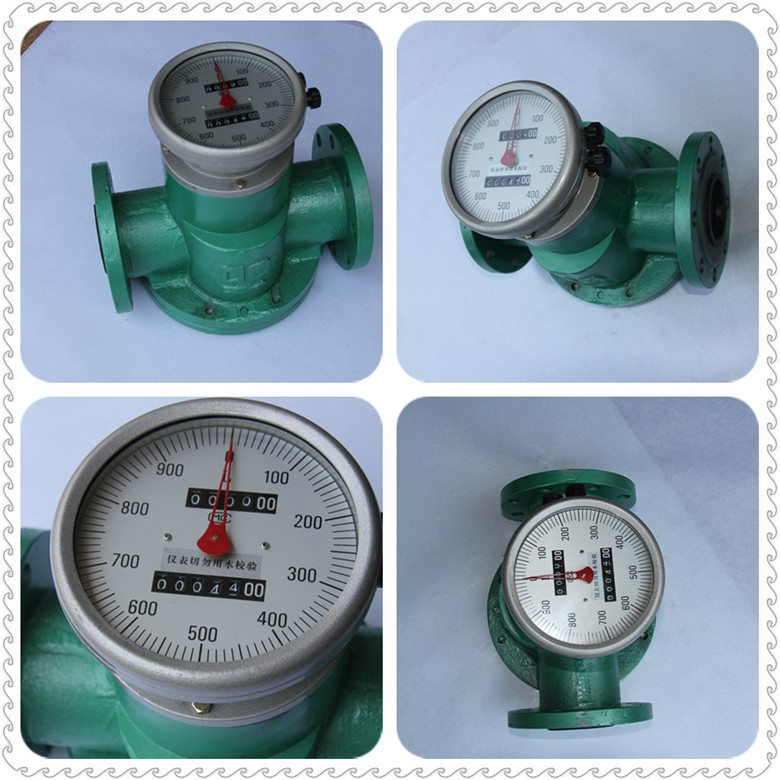

LC Gear Flowmeter MeterLC gear flowmeter is widely used in flow measurement in the industrial field such as petroleum exploitation, oil refinery, chemical and oil storage.
LC Oval Gear Meter, the main type of positive displacement flow meter, is used in a wide variety of applications including measuriing of boiler fuel and diesel oil. as well as for transactions for kerosene, light oil and heavy oil. Resettable is available, the max liquid temperature is up to 200 centigrade.***Please use your verified email address when sending inquiry so that we can communitate successfully. Thanks!***
|
LC Gear Flow Meter |
|
Mode |
LC-15 |
LC-20 |
LC-25 |
LC-40 |
LC-50 |
LC-80 |
LC-100 |
|
DN (mm) |
15 |
20 |
25 |
40 |
50 |
80 |
100 |
|
Min. Flow Rate m 3 /h |
0.3 |
0.3 |
0.6 |
1.6 |
5 |
6 |
10 |
|
Max. Flow Rate m 3 /h |
1.6 |
3 |
6 |
16 |
25 |
50 |
80 |
|
Accuracy % |
+-0.3~+-0.5 |
|
Working Temperature o C |
-10~80 |
|
Pressure MPa |
1.0-6.3 |
|
|
|
Liquid Viscosity MPa. s |
2~75 |
|
|
|
Min. Scale Value L |
0.1 |
1 |
10 |
|
Register Amount m 3 |
999.99 |
9999.9 |
99999 |
Wenzhou Haiwan Pump Co., Ltd is a leading and professional company with many years' experience in pump manufacturing. We specialize in products for many kinds of liquids(such as water, gasoline, lubricant, diesel, acid liquid etc. ) Such as Oil Pump, Gear Oil Pump, Lubricant Pump, Oil Drum Pump, Self Priming Pump, Oil Transfer Pump, Centrifugal Pump etc. Especially Oil Drum Pump which got the National Invention Patents( Patent No: 9724399.4). All our pruducts passed ISO9001-2000 Certification and Chinese 3C Compulsory Certificate.
We have a full range of test equipments and an experienced professional team. Our products have a good market in countries and regions of USA, India, Middle East, Europe, Africa etc. The advanced craft, the strong technology, completed examination, and ceaseless innovation provide a speedy development for Haiwan. We always serve our customers at a low price but with excellent quality and excellent after-sales service. We are in line with " All for Customers". With a view to creat a global, and a brand product, we welcome every customer to develop with us together.
