LC/LC Patch Cord

Product Specifications

Prod Model:	HOLIGHT - P02LL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Colors Are Avaiable:	Low Inertion Loss and High Return Loss
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Brand:	Holight

Product Description

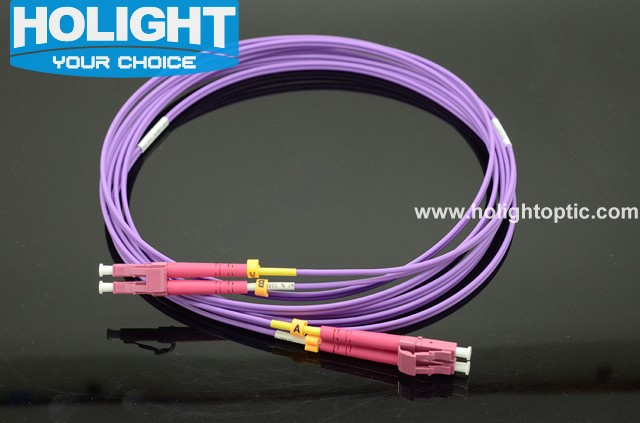

LC to LC OM4 Fiber Optical Patch Cords

APPLICATIONS

· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)

FEATURE

· LC-LC connectors;
· For pigtails, one side of LC only;
· Simplex or Duplex version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.


SPECIFICATION
		Single mode			Multimode
Insertion Loss		≤0.2 dB			≤0.2 dB
Return Loss		≥50 dB (PC)      ≥60 dB (APC)			-
Repeatability		≤0.1 dB
Interchangeability		≤0.2 dB
Durability		plug and unplug 1000 times
Operating Temperature		-40°C ~ 85°C
FOR PATCHCORD ORDERING INFORMATION
Cable number	Both sides conectors	Polish type of conectors	Fiber Type	Boot (cable) Size	Fiber Cable Length		Fiber Cable Jacket		Fiber Cable Color (Standard)
Simplex	LC	PC	9/125μm (SM)	0.9mm	Customized		LSZH		Yellow
Duplex	SC	UPC	50/125μm (MM)	2.0mm	-		PVC		Orange
Fan-out (4f)	ST	APC	62.5/125μm (MM)	3.0mm	-		OFNP		Aqua
Fan-out (6f)	FC	-	-	-	-		-		-
Fan-out (8f)	E2000	-	-	-	-		-		-
Fan-out (8f)	MTRJ	-	-	-	-		-		-
-	MPO	-	-	-	-		-		-
-	MU	-	-	-	-		-		-
For example: DX-LC/LC OM4 3.0mm - 3m LSZH Violet
