Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |

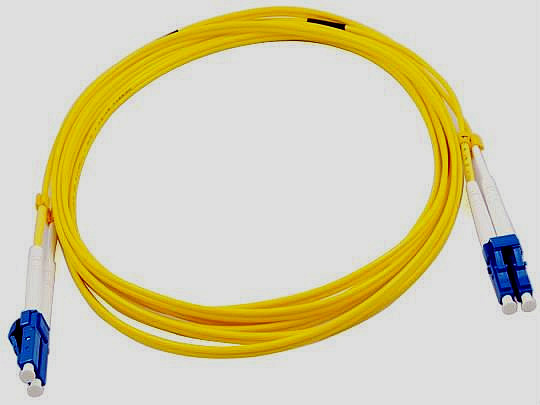

Single-mode Fiber |
| Connection Structure: |
LC |
| Application: |
Communication |
Product Description
Application
CATV
Active device termination Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
Features:
1) Compliant with ISO: 9001, CE, RoHS, UL Standard
2) Easy installation & Environmentally stable
3) High reliability and stability.
4) Pigtail available.
5) Customized Specification are welcome
Optional Information
Payment: T/T
Delivery: Usually ships within 48 hours
Origin: China
Minimum Order: 10 pieces
Packaging: Carton, plastic bag or per customer request
Inspection: 100% tested before shipping
Remarks: Sample is available upon request. Charges will be depended on individual situation.
|
Parameter & Specification |
|
Mode |
SM ( 9/125 )or MM ( 50/ 125 or 62.5/125 ) |
|
Type |
FC, LC, SC, ST, MU, MTRJ, MPO, DIN, ETC |
|
Polishing |
APC, UPC, PC |
|
Insertion Loss(dB) |
≤ 0.2, ≤ 0.3 |
|
Return Loss(dB) |
≥ 60, ≥ 50 |
|
Exchangeability(dB) |
≤ 0.2 |
|
Repeatability(dB/1000times) |
≤ 0.2 |
|
Operation Wavelength(nm) |
SM=1310 & 1550nm , MM=850nm |
|
Operating Temperature(° C) |
-40 ~ +75 |
|
Storage Temperature (° C) |
-40 ~ +85 |
|
Cable OD(mm) |
Φ 0.9, Φ 2.0, Φ 3.0 |
|
Cable Material |
PVC, OFNR, LSZH |
Shenzhen Huiyu Optical Communications Technology Co., Ltd. was established in 2000. We are manufacturers specializing in Fiber optic production.
Our company has a professional group specializing in fiber products research and development. The main products of HYG include Fiber optic connectors, Fiber optic patchcord, Optical attenuator, Optical splitter, Fiber optic transceivers, etc. All the products are strictly in accordance with Bellcore, UL, RoHS, 5S and ISO9001 standards which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
The products are exported to India, UAE, Germany, France, the United States, South Korea, Russia, and is widely used in telecommunications, broadcasting, and electric power industries, and have established a good working relationship with Corning, Furukawa and other companies.
