Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Count: |
Simplex, Duplex, 4~144 Multi-Fibers |
| Cable Outer Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Fiber Type: |
G652d, G655, G657A, G657b, Om1, Om2, Om3 |
| Optional Connector: |
LC, Sc, FC, St, Mu, MTRJ, MTP, MPO, E2000, ESCON, DIN, D4, Sma |
| Mode: |
Singldemode, Multimode |
| Insertion Loss: |
Upc< 0.2dB, APC<0.3dB |
| Return Loss: |
Upc>55dB, APC>65dB |
| Certification: |
UL |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
Product Description

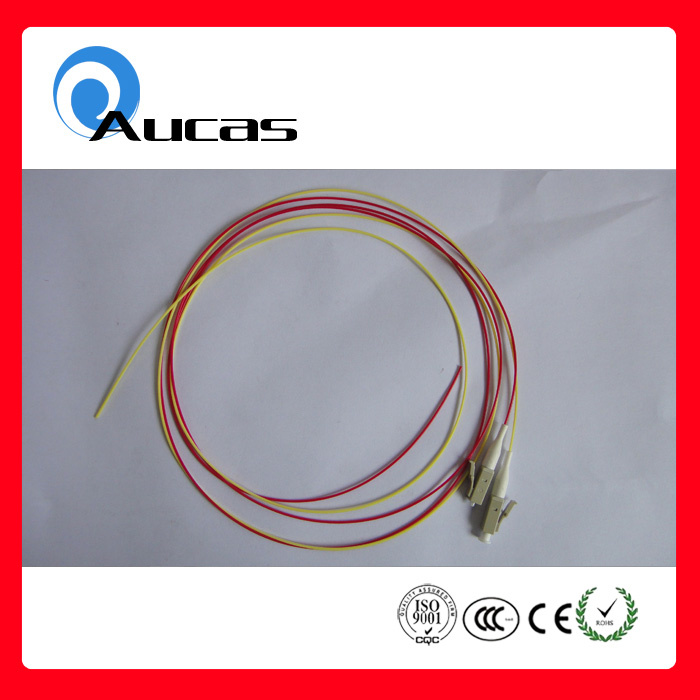

Description of LC multi mode fiber optic pigtail
Brief Introduction:
Fiber Opitc pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc.
Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. Most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail, FC fiber optic pigail, LC fiber optic pigtail, MT-RJ fiber optic pigtail, SC/APC fiber optic pigtail, FC/APC fiber optic pigtail and E2000 fiber optic
Features:
1) With a break-out kit at the junction of fibers
2) Low insertion loss
3) High return loss
4) High temperature stability
5) High interchangeability
6) Simplex and duplex are available
Details:
4, 6, 8, 12, 24, 48 Fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable Connector: FC, SC, ST, LC
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm
|
Characteristrics |
Unit |
Value/Performance |
|
Insertion Loss (IL) |
dB |
PC≤0.2 UPC≤0.2 APC≤0.3 typical |
|
Return Loss (RL) |
dB |
PC≥50 UPC≥55 APC≥65 typical |
|
Accuracy |
dB |
1-10dB: ±1 typical; 10-25: ±10% typical |
|
Max input power |
dBm |
200 mW +23 dBm |
|
Polarization loss |
dB |
0.1 |
|
Geometry |
|
Radius of curvature |
mm |
7-25 |
|
Apex offset |
um |
0-50 |
|
Radial fiber height |
nm |
-50 to +50 |
|
Angular offset |
|
<0.3 degrees |
|
Fiber roughness |
nm |
0-25 |
|
Ferrule roughness |
nm |
0-50 |
|
Endface Defects |
|
Fiber core |
nm² |
0 |
|
Mode field diameter |
nm² |
0 |
|
Ferrule contact zone |
nm² |
<10 |
|
Temperature |
|
Operating Temperature |
ºC |
-40~+80 |
