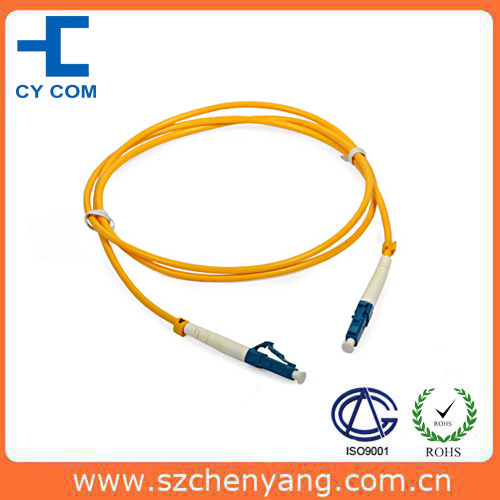

Product Specifications
| Prod Model: |
CPA-LULUS1-30/01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Diameter: |
0.9mm,2.0mm,3.0mm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
RoHS |
Product Description
Features:
1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC); ≤ 0.3 (SPC);
3) 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); ≥ 50 (SPC);
4) φ 0.9mm, φ 2.0mm, φ 3.0mm fiber optic cable optional;
5) Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Good exchange ability and good durability;
8) Available in fiber bunch, ribbon fan-out, pigtail available;
9) Meets ISO9001, RoHS and Bell core GR 326-core standards;
10) Customized specifications welcomed.
Applications:
1) CATV, metro Test equipment
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
|
Parameter |
Unit |
Index |
|
|
|
FC/PC |
FC/APC |
SC/PC |
SC/APC |
ST/PC |
ST/APC |
MU/PC |
LC/PC |
LC/APC |
|
Insertion Loss |
dB |
≤0.3(single mode); ≤0.1(multi mode) |
|
Repeatability |
dB |
≤0.1 |
|
Interchangeability |
dB |
≤0.2 |
|
Return Loss |
SM |
dB |
≥45 |
≥60 |
≥45 |
≥60 |
≥45 |
≥60 |
≥50 |
≥50 |
≥60 |
|
MM |
dB |
≥36without APC connector |
|
Mating cycle |
cycle |
1000 |
|
Operating temperature |
|
-40~+80 |
-25~+70 |
-40~+80 |
-25~+70 |
Shenzhen CY COM Product Co., Ltd. was established a few years ago and headquartered in Shenzhen. As a professional manufacturer and supplier specialized in fiber optical communication products, we mainly deal with fiber optic patch cords, pigtails, connectors, adaptors, attenuators, passive devices and layout products.
In the past several years, based on the market trend, CY Company has been assessed and certified as the meeting of requirements of ISO9001 & SGS and be known for high-end products quality, competitive prices, fast delivery and good service.
Not only offer OEM for fiber optic assemblies to some world leading companies in this field, but also we could hook up with many other partner companies and support them to win in the market.
With powerful R&D team, besides producing standard items, we manufacture products according to customer's detail specifications and requests even with customer supplied raw materials and parts.
If any should be help, welcome to contact us for assistance. We would love to do you a favor.
