Product Specifications
| Prod Model: |
LC-PM1-100/2T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
LC-Pm1-100/2t |
| Operation: |
Pneumatic |
| No. Of Color: |
1 |
| Plate Area: |
100*200 Mm |
| Sealed Ink Cup Diameter: |
90 Mm |
| Max Printing Speed: |
2000PCS/H |
| Machine Weight: |
100kg |
| Transmission Type: |
Multi-Color Pad Printer |
| Speed（pcs/hr）: |
1800 |
Product Description

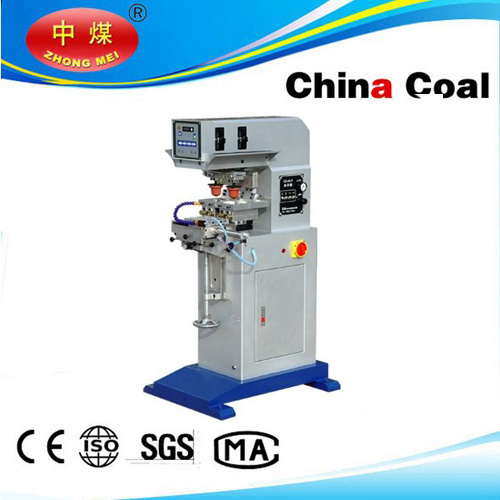

The pneumatic double-head pad printer could be acted as two pieces of single colors pad printer, it is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color's printing. Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc. use Printing plate Rang : long life thin(0.25-0.5mm) steel plate ,Red polymer ,Thickness 10mm steel plate.
Specifications
| Model No | LC-PM1-100/2T |
| Operation | Pneumatic |
| Colors | 1 |
| Plate area | 100*200 mm |
| Sealed ink cup diameter | 90 mm |
| Max Printing area | 80*90mm |
| Max printing station | 2PCS |
| Max printing speed | 2000PCS/H |
| Wattage | 220V/ 50Hz 110V/60Hz |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 860x460x1400mm(LxWxH) |
| Machine weight | 100KG |
