Product Specifications
| Prod Model: |
TXSU-LCSC03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insertion Loss: |
≤0.2dB |
| Return Loss: |
≥50dB |
| Length: |
3m/Customized |
| Cable Diameter: |
2.0mm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
BV |
| Connection Structure: |
LC-Sc |
| Brand: |
Yacht |
| Sheath Material: |
PVC/PE |
Product Description

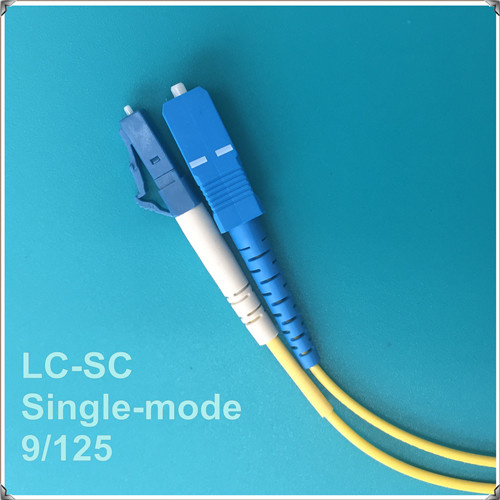

LC-SC UPC Optical Fiber Patch Cable
DescriptionLC-SC UPC Optical Fiber Patch Cable mainly used between the device and the device, fiber link connection between the device and the patch panel to provide multiple types of fiber, including multi mode 62.5/125,50/125,QuintillionOM3, OM4, and single mode 9/125 PC, UPC, APC .etc
FeaturesLC-SC UPC Optical Fiber Patch Cable
using prefabrication, highquality parts, ceramic ferrule and optical fiber, optical performance provides excellent control of the plant, with a low insertion loss and emission loss, easy installation and fast.
StandardISO/IEC 11801
ApplicationsCommunication, local area network, fiber to the home, digital high-definition monitor, and other fields.
Performance
Performance & Specifications |
| Fiber Type | SM | MM |
| Normal Fiber OD | 125±0.2um | 125±0.2um |
| Connector Type | SC,FC,ST, E-2000, LC, MU | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB |
| Return Loss(Typical) | PC | 50dB | 35 | - |
| UPC | 55dB | - | - |
| APC | 65dB | - | - |
| Mating Durability(500 C) | 0.2dB |
| Temperature Stability | 0.3dB |
| Operation Temperature | -25°C~+70°C |
| Storage Temperature | -25°C~+70°C |
