Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication |
| Connection Structure: |
LC |
| Certification: |
RoHS |
| Type: |
Single-Mode/Muti-Mode Fiber |
| Brand: |
Fipos |
| Sheath Material: |
Lszh/PVC |
Product Description
Description

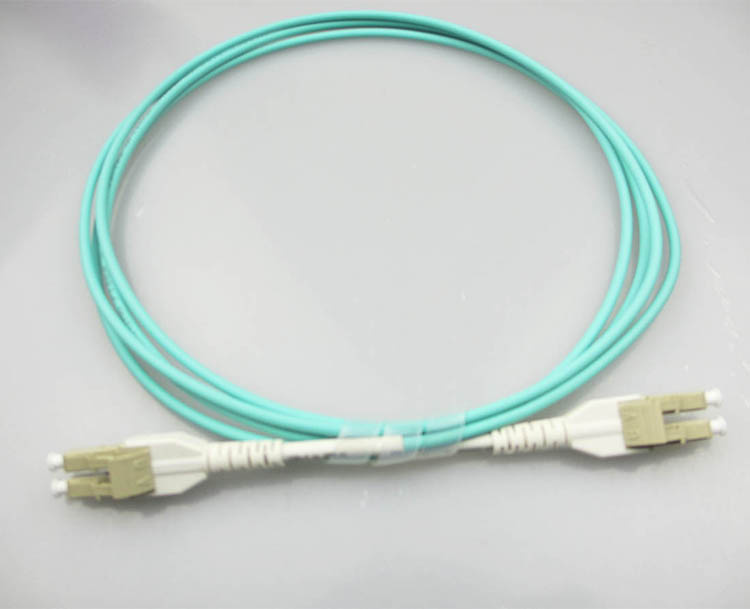

Our uniboot fibre patch cord reduces cable management space by up to 68% compared to standard patch cords. The patch cord utilises a special "round duplex" cable that allows duplex transmission within a single 3mm or 2.4mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment.
Feature
Low insertion loss
Good repeatability
High return loss
Mutual insert performance
Good temperature stability
Tensile strength
Application
Communication system
LAN
Optical access network
Data transmission
Testing equipment
High cabling density applications
Specification
| Parameters | SM | MM |
| Core Diameter (um) | 9/125 | 62.5/125 | 50/125 | OM3 | OM4 |
| Surface | PC | UPC | APC |
|
| Return Loss (dB) | ≥50 | ≥55 | ≥65 |
|
| Insertion Loss(dB) | ≤0.3 |
| Repeatability(dB) | ≤0.2 1000Times |
| Operating Temperature(ºC) | -40~+85 |
