LC1/Cjx2 Series Electrical AC Contactor, New Type Hot Selling AC Contactor, High Quality 3 Phase Magnetic AC Contactor

Name: LC1/Cjx2 Series Electrical AC Contactor, New Type Hot Selling AC Contactor, High Quality 3 Phase Magnetic AC Contactor
Brand: china-manufacturer-directory.com
SKU: 693450602
Availability: InStock
Rating: 4.4 (86 reviews)

Supplier:	Wenzhou Kasan Electric Co., Ltd.
Price:	US $ 1-5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	lc1

Product Description

LC1-D series magnetic contactor, types of ac magnetic contactor price

(Supply many kinds of contactor, 3tf,3tb,cj19,gmc,mc, lc1-k, etc)

Application of magnetic contactor

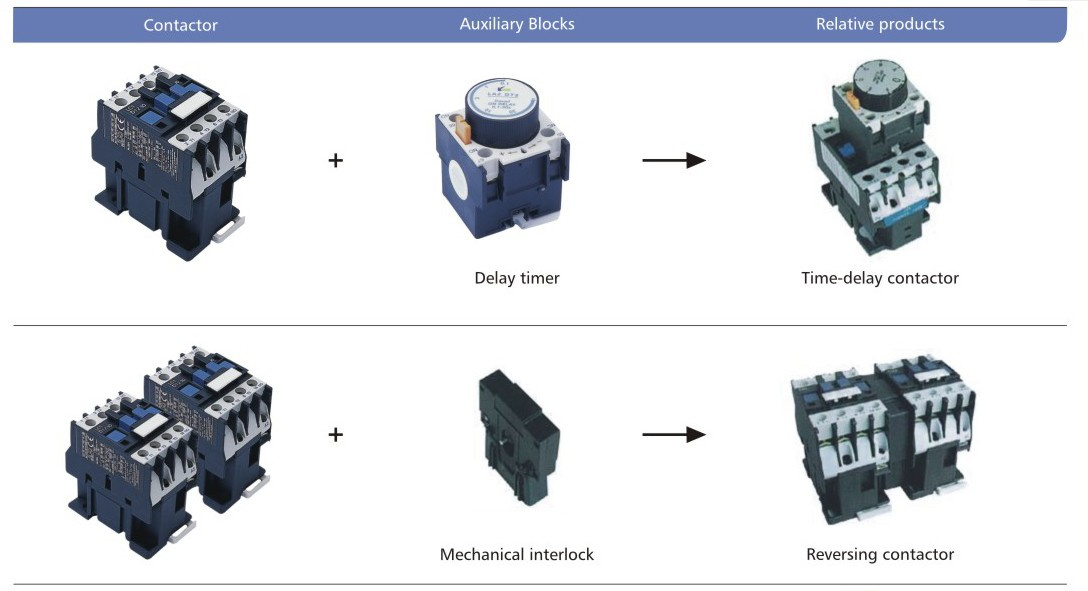

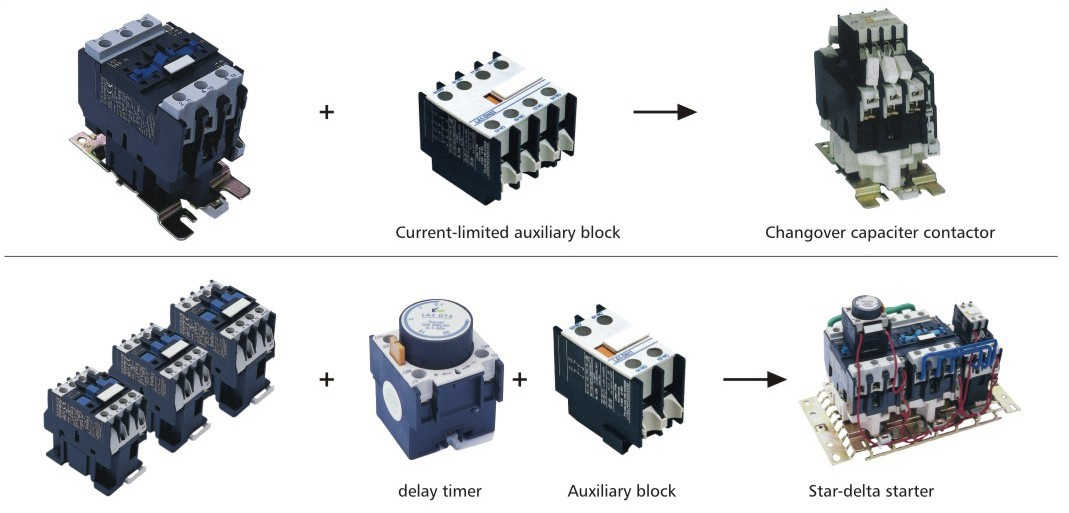

LC1-D series AC magnetic contactor is suitable for using in the curcuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current up to 95A, for making ,breaking ,frenquently starring&controlling the AC motor. Combined with the auxiliary contact block , timer relay and machine interlocking device etc, it becomes the delau contactor,mechanical interlocking contactor, star-delta starter.With the thermal relay,it is combined into the electromagnetc starter.

Type	Rated Power KW/HP( AC-3 )			Rated Current A(AC-3)			Rated Heating Current Ith:(A)	Rated Insulated Voltage Ui:(V)	Auxiliary Contact AC-15					Electrical / Mechanic Life (Million Times)
	Rated Power KW/HP( AC-3 )			Rated Current A(AC-3)					Contact Arrangement		Rated Current (A)		Rated Heating Current Ith:(A)
	200-220V	380- 440V	500-550V	200-220V	380- 440V	500-550V			Standard	Special	200-220V	380- 440V
LC1-D09	2.2/3	4/5.5	5/7	11	9	7	20	660	1NO	/	1.6	0.95	16	1/5
LC1-D12	3/4	5.5/7.5	7.5/10	15	12	9	20	660	1NO	/	1.6	0.95	16	1/5
LC1-D18	4/5.5	7.5/10	9/12	22	18	12	32	660	1NO	/	1.6	0.95	16	1/5
LC1-D25	5.5/7.5	11/15	15/20	30	25	18	40	660	1NO	/	1.6	0.95	16	1/5
LC1-D32	7.5/10	15/20	18.5/25	40	32	21	50	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D40	11/15	18.5/25	30/40	50	40	34	60	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D50	15/20	22/30	37/50	60	50	39	80	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D65	18.5/25	30/40	37/50	75	65	42	80	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D80	22/30	37/50	45/60	90	80	49	110	660	1NO+1NC	/	1.6	0.95	16	1/5
LC1-D95	25/35	45/60	45/60	110	95	59	130	660	1NO+1NC	/	1.6	0.95	16	1/5

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.
in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.
We Wish to Make Friends with All Over The World to Expand Our Products Market.
Business Type: Manufacturer/Factory
Business Range: Electrical & Electronics,Industrial Equipment & Components,Instruments & Meters,Light Industry & Daily Use,Lights & Lighting,Tools & Hardware
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, FAS, DAP, CPT, EXW
Terms of Payment: LC, T/T, PayPal, Western Union
Average Lead Time: Peak season lead time: 1-3 monthsOff season lead time: one month
Number of Foreign Trading Staff: 11~20 People
Export Year: 2006-06-09
Export Percentage: >90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Factory Address: LIUSHI INDUSTRIAL ZONE,WENZHOU,CHINA
R&D Capacity: OEM, Own Brand()
No. of R&D Staff: Less than 5 People
No. of Production Lines: 10
Annual Output Value: US$1 Million - US$2.5 Million
