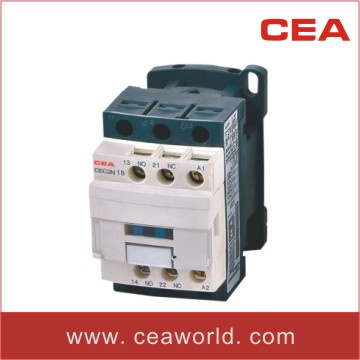

Product Specifications
| Prod Model: |
CEC2N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Conformity to IEC60947
Tropicalized as standard
High making and breaking capacity
All model contactors incorporate with 1 N/O and 1 N/C aux
Contacts as standard
Type |
|
AC3 415V(N. L) |
AC3 415V(L. L) |
Aux. Contact Fitted
as Standard |
|
AMPS |
KW |
HP |
AMPS |
KW |
HP |
AMPS |
NO |
NC |
|
CEC2N09*7 |
25 |
5.5 |
7.5 |
12 |
4 |
5.5 |
9 |
1 |
1 |
|
CEC2N12*7 |
25 |
9 |
12 |
18 |
5.5 |
7.5 |
12 |
1 |
1 |
|
CEC2N18*7 |
32 |
11 |
15 |
25 |
9 |
12 |
18 |
1 |
1 |
|
CEC2N25*7 |
40 |
15 |
20 |
32 |
11 |
15 |
25 |
1 |
1 |
|
CEC2N32*7 |
50 |
22 |
30 |
40 |
15 |
20 |
32 |
1 |
1 |
|
CEC2N38*7 |
50 |
|
|
|
18.5 |
25 |
38 |
1 |
1 |
|
CEC2N40*7 |
60 |
25 |
35 |
50 |
22 |
30 |
40 |
1 |
1 |
|
CEC2N50*7 |
80 |
37 |
50 |
65 |
25 |
35 |
50 |
1 |
1 |
|
CEC2N65*7 |
80 |
45 |
60 |
80 |
37 |
50 |
65 |
1 |
1 |
|
CEC2N80*7 |
125 |
55 |
75 |
105 |
45 |
60 |
80 |
1 |
1 |
|
CEC2N95*7 |
125 |
57 |
77 |
110 |
45 |
60 |
85 |
1 |
1 |
Note: " AC1 duty=Resistive loads power factor> 0.9 5 at 40° C
ambient temperature.
Replace(*)with control coil voltage |
|
Volts |
Rated Current |
24 |
42 |
48 |
110 |
220 |
24 |
|
CEC2N |
AC 50/60Hz |
B |
D |
E |
F |
M |
U |
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
