Wenzhou Kasan Electric Co., Ltd. >> LC1-D Series Magnetic AC Contactor

LC1-D Series Magnetic AC Contactor

Name: LC1-D Series Magnetic AC Contactor
Brand: china-manufacturer-directory.com
SKU: 689982472
Availability: InStock
Rating: 4.9 (87 reviews)

Supplier:	Wenzhou Kasan Electric Co., Ltd.
Price:	US $ 1.5-2/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Type:	AC.DC
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay
Protective Characteristics:	Enclosed Rlay
Load:	High Power Relay

Product Description

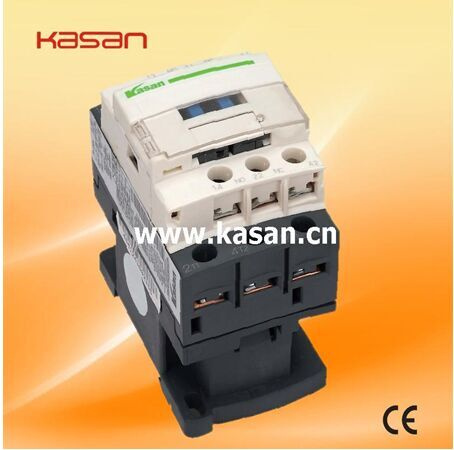

LC1-D 09/12/18/25/32/38/40/50/65/80/95 magnetic AC contactor

Contactor LC1-D NEW series AC contactors are suitable for frequency 50/60Hz, rated insulation

voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.pe

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10 4 )	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10 4 )	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10 4 )		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO
