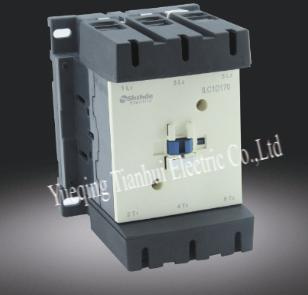

Product Specifications
| Prod Model: |
LC1-D115 220v |
| Markets: |
North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia |
| Theory: |
Electromagnetic Relay |
| Size: |
Miniature |
Product Description
Application:
LC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 standard.
Specification:
ILC1-D115, ILC1-D150, ILC1-D170, ILC1-D205, ILC1-D245, ILC1-D300, ILC1-D410, ILC1-D475, ILC1-D620
Under AC-3, rated working current (A): 115A, 150A, 170A, 205A, 245A, 300A, 410A, 475A, 620A
Under AC-4, rated working current (A): 52A, 60A, 75A, 85A, 105A, 117A, 138A, 147A, 180A
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kw)
220/230V: 30, 40, 55, 63, 75, 100, 110, 147, 200
380/400V: 55, 75, 90, 110, 132, 160, 220, 265, 335
415V: 59, 80, 100, 110, 132, 180, 220, 280, 375
500V: 75, 90, 110, 129, 160, 200, 250, 355, 400
660/690V: 80, 100, 110, 129, 160, 220, 280, 355, 450
Rated heat current (A): 200, 250, 250, 275, 315, 400, 500, 700, 1000
Electrical life AC3:
2 million times for ILC1-D115,
600 thousand times for ILC1-D150 and ILC1-D170,
500 thousand times for ILC1-D205, ILC1-D245 and ILC1-D300,
300 thousand times for ILC1-D410 and ILC1-D475,
200 thousand times for ILC1-D620,
Electrical life AC4:
150 thousand times for ILC1-D150, ILC1-D170, ILC1-D205, ILC1-D245, ILC1-D300,
80 thousand times for ILC1-D410 and ILC1-D475,
50 thousand times for ILC1-D620,
Mechanical life: 3 million times for ILC1-D115, ILC1-D170, ILC1-D205, ILC1-D245, ILC1-D300,
1 million times for ILC1-D410 and ILC1-D475, ILC1-D620,
