Tianshui 213 Electrical Apparatus Co., Ltd. >> LC2 Range Machinery Reverse AC Contactor (GSC1-N)

LC2 Range Machinery Reverse AC Contactor (GSC1-N)

Name: LC2 Range Machinery Reverse AC Contactor (GSC1-N)
Brand: China-Manufacturer-Directory.com
SKU: 672405165
Availability: InStock
Rating: 4.9 (125 reviews)

Supplier:	Tianshui 213 Electrical Apparatus Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	Shanghai Port

Product Specifications

Prod Model:	GSC1-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Size:	Miniature

Product Description

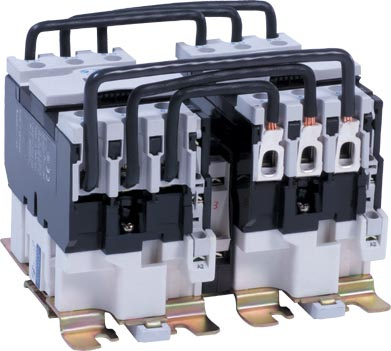

GSC1-N range machinery reverse AC contactor is used in AC 50Hz( or 60Hz ), rated isolation voltage IS up to 690V, and rated current IS up to 95A under rated voltage 380V and category AC-3, for reversible control or reverse control operation motor and double-power control, may combinative with appropriate thermal overload relay as electromagnetic starter, to protect potential overload circuit.

Paraments type				GSC1 -09N
Rated working current Ie A (AC-3)		380V		9
		660V		6.6
Conventional thermal current (A)				25
Rated work voltage (Ue V)				380 660
Rated Insulation voltage (Ui V)				690
AC-3 (6Ie,Ie)	Electric life span			100
	Operation frequency			1200
AC-4 (6Ie,Ie)	Electric life span			20
	Operational frequency			300
	Rated working current (Ie A)		380V	3.5
			660V	1.5.
Auxiliary contactor	Conventional thermal current			10
	Electrical life span		AC-15(360VA)	With the main electrical contact life (AC-3)
			DC-13(33W)
	Connect minimum load			24V 10mA
Coil	Rated control voltage			24. 48. 110. 220. 380
	Pull voltage			0.85~1.10Us
	Release voltage			0.02~.075Us
	Coil power		Pull	76
			contain	10
Machinery life span 10 4 tiimes				300

Tianshui 213 Electrical Apparatus Co., Ltd. is one of leading manufactures in Control Devices, Distributing Devices and Compelete Equipments in China. Main products cover AC contactor, DC contactor, thermal overload relay, electronic overload relay, contactor relay, pneumatic time-delay, MCB, MCCB, ACB.

We have 1300 employees, of whom 420 are technicains. We can supply 5 million pieces of high quality low-voltage apparatus devices and 20000 complete sets equipments per year. We are the supplier of Emerson and Tyco Electrionic. Our products export Europe, Russia, Vietnam, India. Our enterprice and products has been approved by ISO9001, ISO14001, OSHAS 18001; IEC, CCC, CE, UL, TUV and RoHS respectively. "Tianshui 213" awarded as China Well-know Trademark and also win a good reputaion from our customers around the world.
