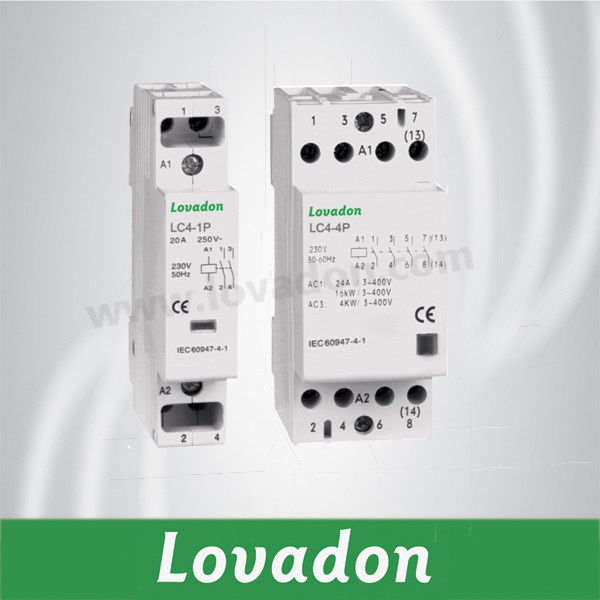

LC4 DIN Rail Modular Contactor

Product Specifications

Prod Model:	LC4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Life Of The Machine:	10, 000, 000 Times
Manufacturers:	Yes
Rated Voltage:	24V 36V 110V 117V 220V 380 V 415V
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Contactor

Product Description

      Modular contactors are essential for controlling and automation duties in dwellings,offices, shops and hospitals.
They are particularly suitable for switching lighting installations, heat pumps, night storage heating, air-conditioned
plant and for other devices in building automation.The products comply with IEC60947-4.
andard control voltage(Ue):20-230V/50/60Hz
Thermal continuous current(1th):24A
Current rating for AC1:24A
Pole number:2,4 (either as main or auxiliary contacts)
Back up fuse gL max ratings:35,63,80A
Mechanical endurance:10million cycles
Electrical endurance:1million cycles
Ambient temperature:-25~+55
Connection capacity: tunnel terminal for cables up to 25mm
Width in 17.5mm modules:  24A 35mm (2 modules)









Type	In(A)	Rated AC-1		Power(kW) AC-3		Coil consumption on pull-in holding	Closing time	Opening time
LC4	24	230V	400V	230V	400V	4W	25-35ms	30-40ms
2P 4P		9	16	2.2	4
