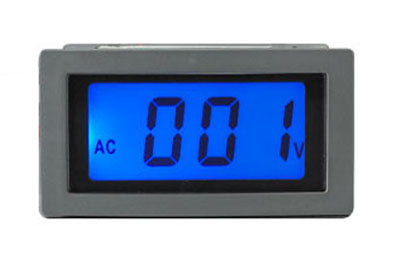

5130LCD DIGITAL LCD PANEL METER
SPECIFICATION:
1. Accuracy: ± 0.3% rdg± 1digit(23± 5)
2. Display range: 0-1999
3. Display: Liquid crystal display, matches the blue color back light,
Character high 13mm
4. Operating temperature: 0~50
5. Power source: DC9V± 5%
6. Dimension: 56mm× 30mm× 22mm
7. Installation dimension: 54mm× 28mm
MEASUREMENT RANGE:
1. DCV: DC 0~500V
2. ACV: AC 0~500V
3. DCA: DC 0~1999A
The largest measured values for 5A, 75mV fixed value
Current divider requires the use more than 10A
4. ACA: AC 0~1999A
The largest measured values for 5A, more than 10A need
External attached AC transformer.
