LCD Display RS485 Communiction Lightning Counter
Product Specifications
| Prod Model: |
FLRC-L/II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indicator: |
0-125 |
| Counting Current: |
50A(8/20us) |
| Counting Max Current: |
150ka(8/20us) |
Product Description

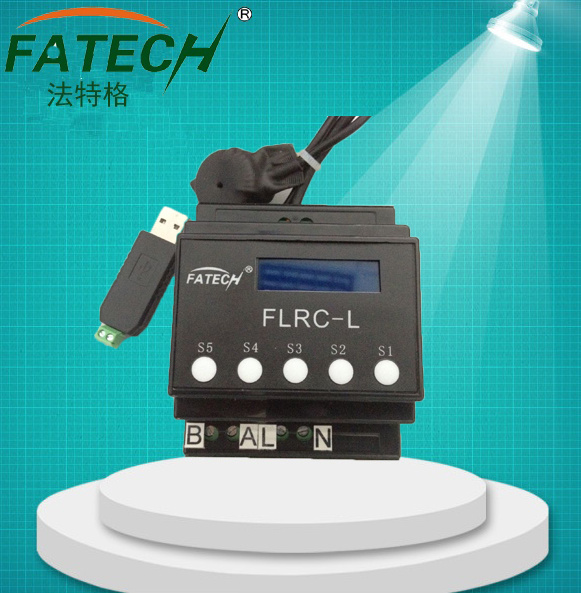

1. RS485 communcation lightning counter FLRC-L/II
The RS485 communcation lightning counteris built with time clock function
Can register 0-125 of lightning strikes, the data won't be lost in case of power failure.
Can check the real time (year/month/day/hour/minute/second) of each lightning strike
Number counting repetition up to 1 million times.
With RS485 communication function, could be communicate with PC; reading, storage and clear lightning counter data through the installation of specialized communication software, communication between PC and lightning counter by connected with twisted pair cable, communication distance could be 1000m.
Installation convenient
Operating temperature: -20ºC-+70ºC
2. Technical data ofRS485 communication lightning counter FLRC-L/II
Model | FLRC-L/II |
Nominal voltage (Un) | 220VAC |
Indicator | 0-125 |
Counting Current (rise time ≥8μs) | 50A(8/20us) |
Counting max current | 150KA(8/20us) |
Date/ time indication | Y/M/D/H/M/S |
Communication | RS485 |
Installation | Indoor installation, 35mm DIN |
Enclosure material | 94-V0 |
Degree of protection | IP20 |
Dimension (mm) | 72*88*59(L*W*H) |
Fatech Electronic (Foshan) Co., Ltd., is a professional manufacturer on R&D, production and sales of lightning and surge protection products. We have two centers (R & D center, marketing center) and joint venture manufacturing bases in China.

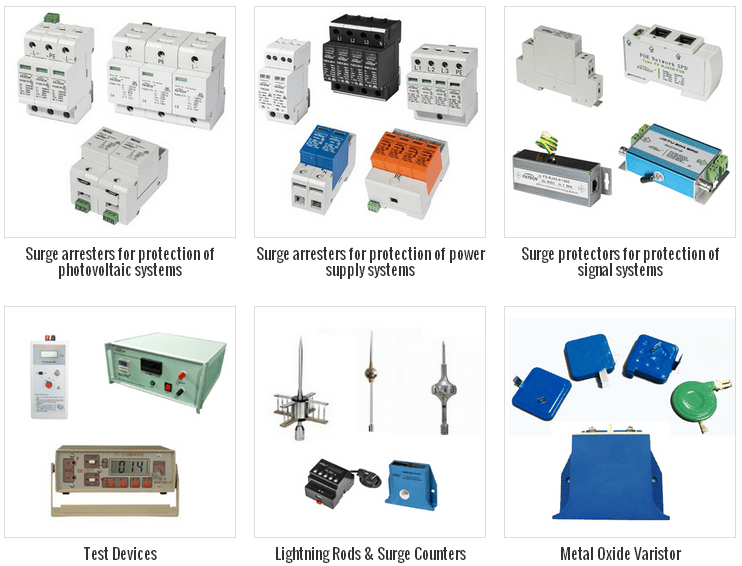

Our main products including:
- Surge arresters for protection of photovoltaic system,
- Surge protection devices for protection of power supply systems,
- SPD surge protectors for protection of signal system,
- Lighting rod,
- Test devices,
- Metal oxide varistors.
Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support.
We have an independent testing laboratory, and a complete set of advanced testing equipment, including impulse current generator, the SPD Test System of Thermal Stability, varistor tester, lightning device tester, & TOV testers. We built up a complete quality control system, and strict process control system, product's stability & reliability are qualified by users.
Our company gathered authority technical experts and professionals, including 2 senior engineers, 5 engineers, and 11 excellent technicians with more than five years experience in lightning and surge protection industry. FATECH is well-known registered trademark, our products have achieved certificates of CE, and the company is achieved ISO9001-2008 quality system.
Based on our superior location advantages (It needs 50 minutes drive from Guangzhou Baiyun International Airport, 2 hours drive from Hong Kong), adhering to the business philosophy - "quality first, customer first, sustainable development", we are encouraging independent innovation, brand influence is increasing day by day, the products is selling to more than 30 countries in Europe, Latin America, Asia-Pacific and other regions.
Here are the advantages of us:
1. Stable Quality --- Product performance is stable and reliable.
2. Competitive Price --- Strict cost control system achievements very competitive prices.
3. Fast and always on-time delivery --- Leading technology and production capacity advantage make sure the short & fast delivery and always on-time.
4. ODM & OEM service supplied --- We are able to make not only standard surge protection devices, but also special products according to customer's requirement...
5. Professional on R&D and manufacturing --- With the capability and experience to provide customers with lightning and surge protection applications solutions
