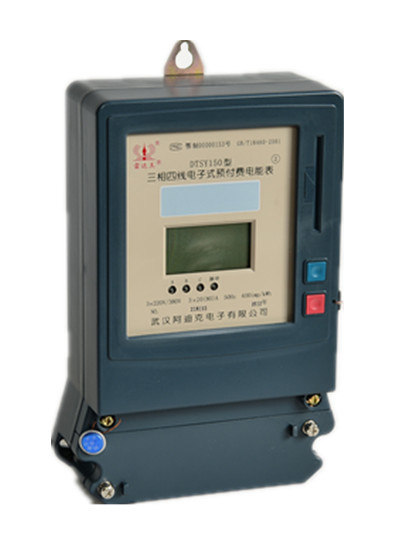

Product Specifications
| Prod Model: |
DTSY150D/LCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3*220/380V |
| Frequency: |
50Hz/60Hz |
| Accuracy Class: |
2.0, 1.0 |
| Clock Accuracy: |
0.5s/Day |
| Power Consumption: |
Less Than 1.0W/Phase |
| Data Storage Period: |
10 Years |
| Pulse Constant(Imp/Kwh): |
6400, 3200, 2400, 1600, 1200, 800, 400, 200 |
| Current: |
5(20)a, 5(30)a, 5(40)a, 5(60)a, 10(60)A10(40)a |
| Display Method: |
Register/LCD/LED |
| Prepayment Method: |
IC Card or Contactless RF Card |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |
Product Description
Specifications
* Standard: IEC 1036, GB/T18460-2001, DL/T645-1997/2007.
* Voltage: 3*220/380V (Three-Phase Four Wires)
* Current 1.5(6)A, 5(20)A, 5(30A), 5(40)A, 5(60)A, 10(40)A, 10(60)A, 15(60)A, 20(80)A, 30(100)A
* Frequency: 50Hz
* Accuracy Class: 2.0, 1.0
* Pulse Constant(imp/kWh) 6400, 3200, 2400, 1600, 1200, 800, 400, 200
* Clock Accuracy ≤ 0.5s/Day (Reference Temperature 23 centigrade)
* Power Consumption ≤ 1W/phase
* Data Storage Period ≥ 10 years, period for clock working since power off is ≥ 5 years
| Product' s Type | One Card One Meter, Multi Cards One Meter, One Card Multi Meters, Special Load Identification |
| Energy measurement | Both of Positive active power and reverse active power can be measured |
| Prepaid | Prepayment IC Card prepaid, electricity sector receive energy charge in advance through selling IC Card. User pay first. |
| Multi-step Price | Two schemes for electricity price. It can switch automatically at the appointed time or reaching the dated level of the electricity.
|
| Working Manner | Warning/Overdraft manner, Warming/Overdraw electricity, Max. accumulations can be set.
|
| Abnormal Protection | Over Voltage, Over Current, Over-loading Protection. |
| Cover Design | Fully sealed dustproof and waterproof design, the material has the excellent flame retardant and anti-corrosion, anti-aging properties. |
| Interface Protection | Perfect interface protection circuit, which keeps the meter from vicious attack, no damaging for meter, no lose for data, and no delay for active.
|
| Communication Mode | Infrared, RS485 interface or carrier communication module (Optional).
|
| Power Supply Mode | Three-phase power supply or it can work while just one phase has electricity for three phase four wires.
|
| Management System | Suit for Digital IC Card Smart Electric Meter Management System(SKZHSFN3.17-SD), Water/Electricity " One Card" Management System (SKZHSFN3.17-YKT) |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
