Product Specifications
| Prod Model: |
XTM18SA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
Class 1.0 / Class 2.0 |
| Output Voltage: |
120V / 220V |
| Operating Temperature: |
-10°c - +50°c |
| Dimensions: |
116*17.5*59 Mm |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Watt-Hour Meter |
| Measured Signal: |
Pulse Peak |
Product Description
Product Brief

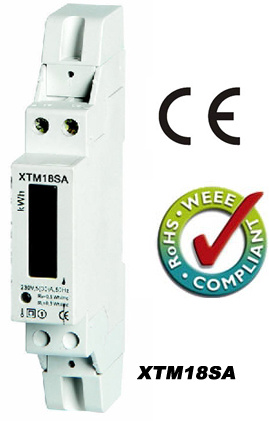

Model XTM 18SA single phase electronic DIN rail activate energy meter is a kind of new type of new style single phase two wire activate energy meter,
It adopt microelectronic technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size.
It has already passed the test of the international authority KEMA.
The meter completely accord with relevant technique requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21.
It can directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net accurately.
This meter has white backlight source eight digits LCD displays shows the active energy consumption.
It has flowing features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
This meter has already got the patent certificate form China State Intellectual Property Office at present.
Patent certificate NO. 201230473770. X and other country patent certificate are in assessing.
Function and Features
1. 35mm standard DIN rail installation, comply with standard DIN EN 50022
2. Single pole width (modulus 17.5mm) comply with standard DIN 43880
3. Standard configuration: 7+1 digits display (9999999.1kwh) by white black source LCD. May select 7+1 digits display (999999.1kwh) without backlight source general LCD (product configuration code is SE)
4. Standard configuration: Pulse output passive (polarity). The pulse output passive can be no polarity. Contact with all kinds of AMR system convenient; Comply with standard IEC 62053-31 and DIN 43864.
5. Bicolor LED instructions power supply state is green and signal of energy impulse red.
6. Automatic detect the direction of the flow of load current...When the instructions on LED display HELP 1, it means the direction of the flow of load current reverses.
7. Measuring single phase two wire active energy consumption in single direction, it is nothing with the direction of the current load, comply with the standard IEC 62053-1,
8. Directly connect operation. Standard configuration type S.
9. Extension terminals cover, for electrical safety.
