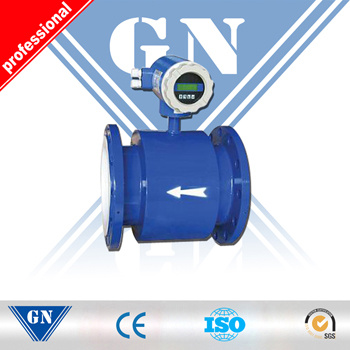

LCD Electromagnetic Flow Meter for Industrial Waste Water (CX-HEMFM)
Product Specifications
| Prod Model: |
CX-HEMFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Temp: |
180c |
| Max Size: |
2000mm |
| Pressure: |
4MPa |
| Certificate: |
ISO,CE,SGS |
| Type: |
Electromagnetic Flow Meter |
| Measuring Principle: |
Electrical Principles |
| Measuring Media: |
Liquid |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Various Liquid |
| Size: |
|
Product Description
Brief introduction of Electromagnetic Flow Meter
1.it can measure all kinds of electronic conductivity liquid, such as corrosive liquid , mud and slurry ,water etc.
2.The result cannot be affected by temperature, pressure, viscosity and density.
3.Flow sensor and intelligent converter compact or separately composes a complete flowmeter.
Main features
1.No move assembly, no abrasion
2.Measuring range rate: 1:100
3.No flow enhance equipment
4.Suits for various of electronic conductivity liquid
5.No affect from temperature, viscosity, pressure and density
6.Anti-corrosion
7.Measure both to and reverse flow
8.Huge display, easy operate
9.Long-term EEPROM to save data when lose power
10.Support MODBUS/HART communication protocol
11.Wide working volts range or battery supply
12.Self diagnose
Technical parameters
| Display | reaches 8 element liquid crystal display, current clock to indicate flow data. Units( m3 or L) |
| Structure | inserted style, compact type or separate type |
| medium | liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2 |
| Range | 0.05m/s~12m/s |
| Accuracy | range between 0.1m/s~10m/s can be 0.5% |
| DN | 6mm~2000 mm |
| PN | PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional |
| Output signal | 4~20mA or frequency |
| Communication | RS485,support MODBUS protocol (not standard), support HART(option) |
| Connection | DN6~DN2000 flange connection |
| Connection standard | suits for all kinds of flange standard(eg:BS EN1092-1) |
| Standard | accuracy apply to EN1434-1:2003 standard |
| Protection grade | compact type for IP65,separately type for IP67or IP68(optional) |
| Power | AC86~220V or DC24V(optional) |
| Ambient temperature | 5~55C |
| Ambient humidity | <85 % r.h (non condensation) |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
