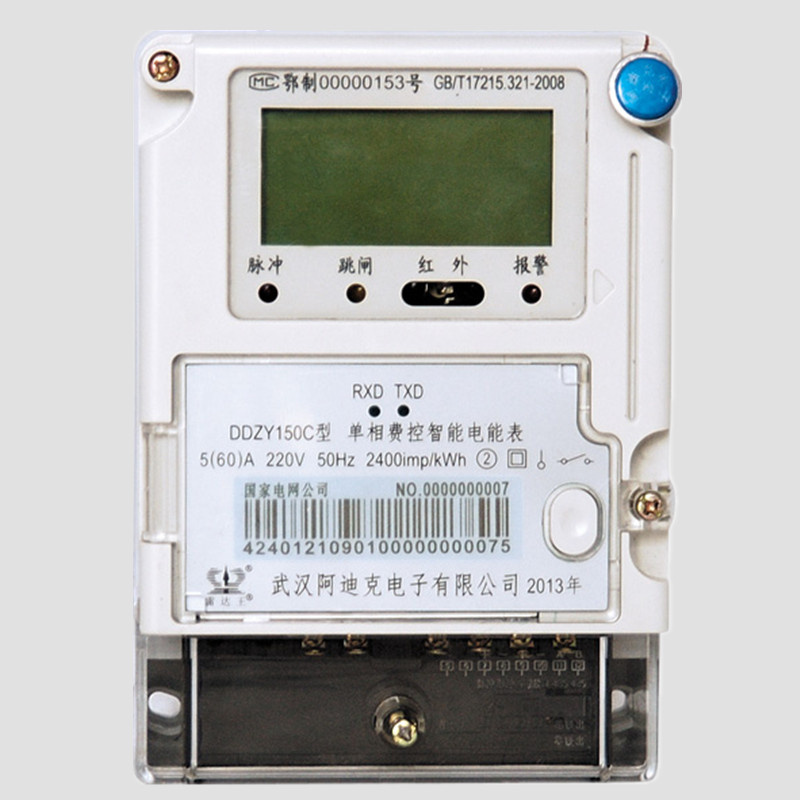

Single Phase Fee Control Smart Electric Meter is a smart metering device with special design for nation smart grid. With independent infrared, RS485, carrier communication and IC card interface, it can support for remote or local fee control function. The meter has advantages of high accuracy, good linearity, wide range and long life, which can widely used in city, country or school and any enterprise.
Features
1. Product's Type— Remote, Remote Carrier, Local, Local Carrier.
2. Electric Power Measurement— Positive active power, reverse active power can be measured, and according to which setting for active group. For active power, it can accumulate and storage total, top, peak, flat, valley power. It can storage and display total power and power for each tariff for last 12 months.
3. Multi Tariff— With 2 sets of tariff, which can changeover automatically on appoint time. Each tariff can support for 4 rates. It can set 14 time zones in a year, and program at most 14 periods in 24 hours. The minimum time interval is 15 minutes for periods, which can be set over 0: 00am.
4. Ladder Billing— With function for ladder billing, two programs of electrovalence, which can be changed over automatically at appoint time or reach appoint electricity consumption.
5. Event Log— With function for logging events such as clear, program, timing, power down, switch out, switch on, open meter cover and etc.
6. Electricity Freezing— With multi freezing ways of instantaneous freezing, timing freezing, day freezing, appoint freezing, on hour freezing and etc.
7. Load Profile— It can profile kinds of operation for query analysis.
8. Measure Function— Real time measuring and displaying current voltage, current (including zero line current), power, power factor and gird frequency, and it can also display the operating parameter such as direction of power.
9. Demand Operating— Handle parameter setting, prepaid electricity charge, information write back, switch out and switch on demand to the meter through solidity or virtual medium.
10. State Indicator— LED indicators for pulse, warn, switch out, and error code would be displayed on LCD, which can help to understand the working state for meter.
11. Safety Certification— The operations on meter have passed strict safety certification such as password or ESAM module (SM1), to promise for the safe transportation of data.
12. Reliable Design— Perfect power source and electromagnetism compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.
13. Communication Mode— Infrared+RS485 interface, carrier communication module.
| Name | Parameter |
| Standards | IEC62053-21: 2003, DL/T645-2007,
GB/T17215.321, State Grid and China Southern Grid Smart Meter Standard |
| Voltage | 220V (Single Phase) |
| Current | 1.5(6)A, 5(20)A, 5(30A), 5(40)A, 5(60)A, 10(40)A, 10(60)A, 15(60)A, 20(80)A, 30(100)A |
| Frequency | 50Hz |
| Accuracy | Class 2.0 |
Impulse Constant
(imp/kWh) | 6400, 3200, 2400, 1600, 1200, 800, 400, 200 |
| Clock Accuracy | ≤ 0.5s/Day (Refer to temperature of 23 centigrade);
≤ ± 1.0s/Day at -25 to +60 centigrade) |
| Capacity of Lithium Battery | ≥ 1.2Ah, the working time lasts more than 5 years even if power off . |
| Data Storage Period | ≥ 10 years
|
| Power Consumption | ≤ 1.5W |
| Communication Rate for Infrared | 1200BPS |
| Communication Rate for RS485 | 2400BPS (Typical Value)
600BPS, 1200BPS, 2400BPS, 4800BPS, 9600BPS (optional for demand) |
| Digital Display | 6+2 bits LCD |
| Weight | About 0.8kg |
| Dimension | 112*160*58 mm |
*Please advise us if you need any different specifications,we can make according to your special requirement.
Transportaion & Storage Condition
The meters should be free from violent collision when being delivered or sealed off, and the buyer should in accord with the rules of ZBW003-82/84 for General Technical Conditions Of Instrument And Apparatus Packaging to transport and store them.
The meter should be stored in its original pack and the ambient temperature to keep them should be within -25ºC and 70ºC, there are no corrosive gas in the air.
The meter should be placed on the shelves in the warehouse and the stack height should be less than 5 cartons.
There shall be no harmful substance causing the corrosion in the air.
