Product Specifications
| Prod Model: |
#Ny-IR -SEVAN-injLCD |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East |
| Commodity: |
LCD PCB Circuit Boards |
| Item No.: |
#Ny-IR -Sevan-Injlcd |
| Base Material/Laminate Details: |
1.6mm Fr-4(Tg135) |
| Board Size: |
201.83mm*191.7mm |
| Finished Copper Weight/Thickness: |
1oz |
| Soldermask Details: |
Gren |
| Silkscreen/Legend: |
White |
| Surface Finishing/Treatment: |
HASL |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
Product Description

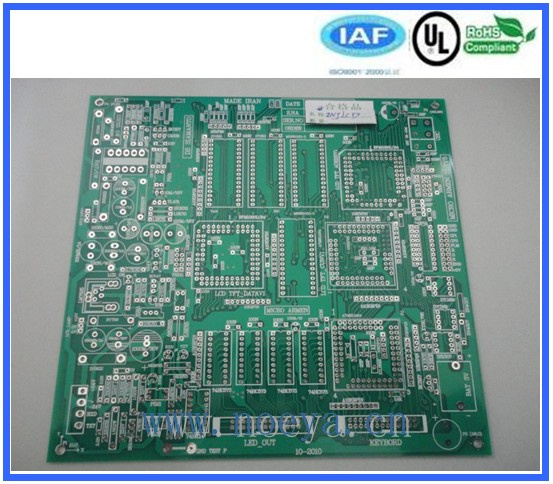

LCD PCB circuit boards:
Technical details:
1)layer count: 2 layers
2)material details: 1.6mmFR-4, 1oz finished copper weight
3)Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
4)available finished copper weight: 0.5-4oz,
Available board thickness: 0.4mm-3.2mm
Available surface finishing: HASL, OSP, IMMERSION GOLD, gold plated, flash gold, ENIG, immersion Tin
Available soldermask: White, black, green, blue, yellow(orange), RED
5)Max board size: 600mm*600mm
6)HASL/Immersion tin
7)Min line width/spacing: 0.31mm
Min, Hole size(aperture): 0.2mm, hole tolerance: +/-0.05mm
Min. Solder bridge: 0.07mm, Dimension tolerance: +/-0.1mm
6)Outline/profile/contour: CNC Routing, CN milling
7)Lead time: 5 days for prototypes, 9 days for mass production
8)Certification: RoHS&UL
9)application: LCD
Board size details and panelized details:
3)circuit characteristic: Simple; Each PC size: 200mm*287.63mm
Panel details: NONE breaking off strips: NONE
Advantages:
1) Best quality and attractive price.
2)Best on time shipping
3)with 100%E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
7)Ultra modern manufacturing facility
Main markets:
United Sates and Australia
Hot-selling time:
Hot selling in Jan and Feb. 2012
Capacity:
8, 000sqm/month for 6 layers PCB; 10, 000sqm/month for 4 layers PCB; 12, 000sqm/month for 2 layers PCB; 15, 000sqm/month for 1 layer PCB
