Product Specifications
| Prod Model: |
DW-140CF |
| Markets: |
Southeast Asia,Oceania,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Door Number: |
Single Door |
| Type: |
Chest/Deep Freezer |
| Door Type: |
Folding Door |
| Power Source: |
Electricity |
| Temperature Control: |
Computer Thermostat |
| Temperature Type: |
Single-temperature |
| Defrost Type: |
Manual Defrost |
| Function: |
Freezing |
| Certification: |
CE |
| Capacity: |
Working Area |
Product Description
Applications

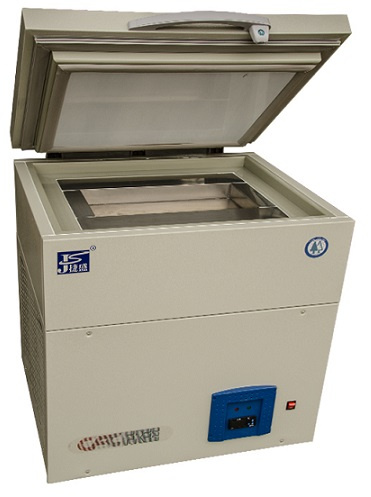

The freezer is a special device used for separating digitizer(front glass) from LCD screen of .
mobile phone and other similar electronic products.
Features:
1. Fast cooling, the freezer pulls down the temperature from ambient temperature +25°C to
-140°C within 110 minutes.
2. High efficiency, using our patented refrigeration technology of single-stage refrigeration system and mixed CFC free refrigerants, reliable system operation.
3. Energy saving, the power during stable operation is not higher than 850W, the power consumption is only 45% of that of traditional products of its kind, remarkable effect on energy saving.
4. Green and environmentally friendly, low noise and silence, CFC free refrigerants, the operation noise is around 60 dB, much lower than other similar products.
5. Compact structure, no need much space.
6. Convenient operation, just connect power supply of 220V/50Hz, the freezer can operate without problem.
7. The working area is 304 stainless steel.
8. Imported microprocessor controller, the temperature can be adjustable between -100°C to -450°C, the user can set the temperature according to practical applications.
9. The major components the freezer used are world famous brands.
| Model |
| DW-140CFA |
| Type |
| Horizontal |
| Capcity |
| / |
| Inside temperature |
| -100°C to -140°C, adjustable |
| Climate class |
| N |
| Power supply |
| 220V/50Hz |
| Rated input |
| 850W |
| Protective class |
| I/B |
| Cooling system |
| Single-stage refrigeration system |
| Compressor |
| SECOP or Brand compressor |
| Evaporator |
| Copper tube |
| Condenser |
| Fan cooling fin type |
| Condenser fan motor |
| EBM |
| Refrigerants |
| Mixed CFC refrigerants |
| Sensor |
| PT100 |
| Controller |
| KELD, Electronic from Spain |
| Temperature display |
| Digital display |
| Alarms |
| Audible/visible |
| Exterior |
| Powder coated steel sheet |
| Working area |
| 304 Stainless steel & copper plate |
| Door |
| Top open single foamed door |
| Door handle & lock |
| Plastic handle with lock |
| Unit dimension |
| 560*480*780mm |
| Working area dimension |
| 270*190*50mm |
| Packing dimension |
| 630*550*930mm |
| Net/gross weight |
| 55/70kg |
|
|
|
Zhejiang Jiesheng Low-Temp Equipment Co., Ltd. Is a professional manufacturer and supplier of low temperature and ULT (ultra low temperature) freezers with almost 20 year's research of ULT refrigeration technology.
The ULT refrigeration technology of single-stage cooling system and mixed CFC free refrigerants with independent IPR(intellectual property rights) owned by our company is at first class in China and leading position in the world. The products we manufactured feature with high efficiency and energy saving, fast cooling, environmentally friendly and reliable performances. Our products are used for cold storage of biological specimens & products and seafood & tuna and special foods, e. g. Ice cream, and used for low temperature test and cold treatment of electronic & mechanical components & devices. Our products are widely used in laboratories of institutes & universities and biological engineering research, in the industries of electronics & chemistry, machine manufacturing and mining, food freezing and distant fishery.
We are now manufacturing -45° C, -60° C, -86° C, -105° C, -136° C and -150° C complete series of low temperature and ultra low temperature freezers and industrial cryogenic freezers such as LCD screen separating freezers etc., super freezers for tuna & seafood, display freezers, blast freezers. Our products are popular with our users and have been exported to the markets of South East Asia, Oceania, Europe, America and Middle East.
With our operation philosophies of "Credit, Innovation, Service, Mutual Benefit", let's join hands and create a brilliant future together.
