Product Specifications
| Prod Model: |
KI-PG350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Phone Numbers: |
6 |
| Zones: |
99 Wireless and 4 Wired |
| Screen: |
LCD |
| Application: |
Indoor |
| Working Mode: |
Passive |
| Signal Transmission: |
Wireless Alarm |
| Type: |
Home Alarm |
| Sensor Type: |
Infrared Sensor |
| Usage: |
Home |
Product Description
Product Name:

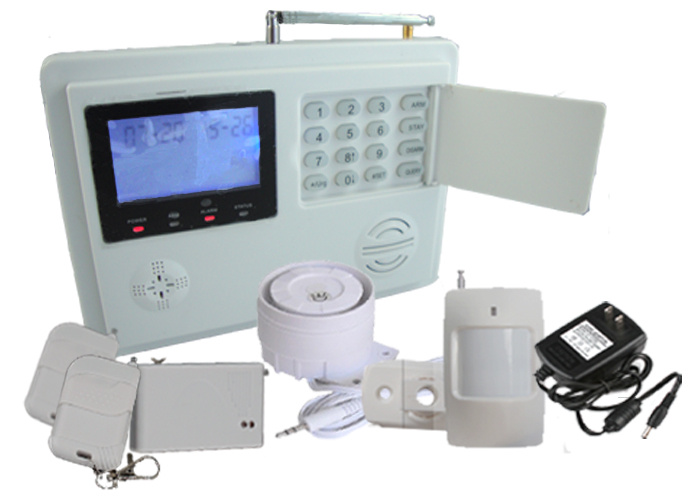

LCD wireless home alarm system KI-PG350 with PSTN+GSM network
Description:
1. Large LCD English blue back-light display, voice prompt, ease of use.
2. Support dual-network of both PSTN landline and GSM mobile network, provide redundancy for extra stability.
3. Can check status and call records from panel.
4. Allow up to 99 wireless defense zones and 4 wired zones.
5. Each can be defined as one of the 8 zone types including NORMAL, STAY, INTELLIGENT, EMERGENCY, CLOSED, HELP SENIOR, WELCOME and CHIME.
6. Four sets of scheduled arm/disarmed function, each time disarmed you can select the included period of time and different defense zone, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
7. Support configuration via phone ( handset ) or SMS messages to System Setup text messaging costs associated with the alarm panel.
8.6 group voice alarm phone number for alert calling, 3 group phone number for help senior, 6 group for SMS messaging, numbers saved inside EEPROM without lost upon power failure.
9. Different zones can dial a pre-set telephone number.
10. Support ISD automatic voice mailbox for playback message upon alert. Maximum length of voice message is 10 seconds.
11. Telephone (phone) long-distance telephone control for arming, disarming, monitoring, remote announcement.
12. 1 Set of normally open signal outputs, relay linkage output, home appliances remote control can be realized.
13. Wireless intelligent study coding, compatible with PT2262 normal encoding and a 1527 encoding, convenient and flexible for adding or reducing accessories. Maximum support 150 remote control and 150 sensors.
14. Unique black box features, you can display most recent 72 disarmed records and 102 recent alarm recording. Accurately shows the alarm time and control code.
15. Built-in Ni-Hi rechargeable battery and automatically switchable upon power failure, and notification will be sent via SMS.
16. Panel integrated with either dual-band, triple-band, quad-band GSM/GPRS industrial graded module, stable and reliable.
Specification:
1. Power Voltage: AC110-242V DC9-15V
2. Static Current: <=50mA
3. Alarm Current: <=250mA
4. Batteries: Built-in rechargeable
5. Receive Frequency: 433MHz± 1MHz
6. Alarm volume: >=90dB within 1 meter
7. Dial way: Dual-frequency voice dial
8. Dial parameter: -7± 2dBm(high frequency); -9± 2dBm(low frequency)
9. Max temperature: -15degree~55degree
10. Relative humidity: <80%
11. Dimension of main host: 240× 128× 57mm
Standard Package list:
Mainframe X1
Remote contol X2
Wireless PIR Motion Sensor X1
Wireless Door magnetic Sensor X1
AC/DC AdaptorX1
User Manual X1
