Product Specifications
| Prod Model: |
LD-MK4010/4020/4030/4050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

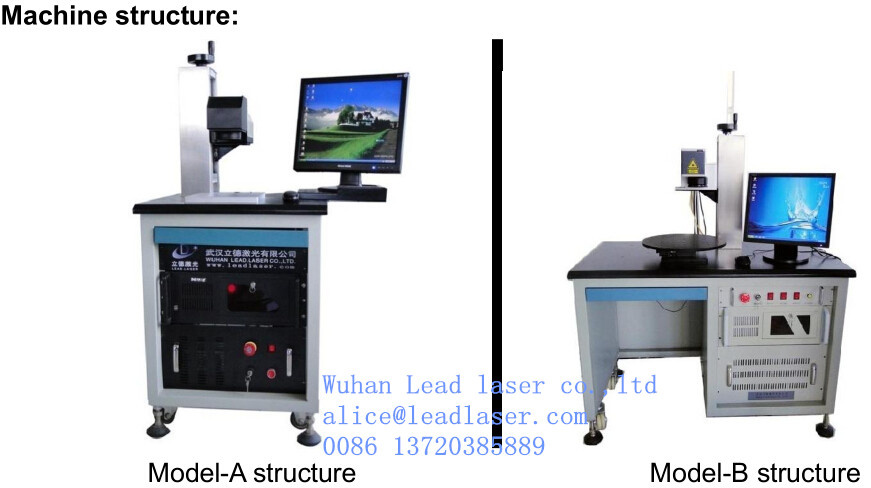

LD-MK4010/4020/4030/4050 Fiber Laser Marking Machine
Applied materials: various metal parts of nonmetal materials.
Applied industries: metal products manufacturing, building materials, fine stainless steel,
precision hardware, electronic components, electronic communications, electrical appliances,
automobile and motorcycle accessories, gift accessories, glasses, clocks, instruments, sanitary
ware and other industries.
Features:
1) The machine adopts the advanced fiber-optic lasers and imported key parts, with high
precision, fasten speed, stable performance and long life working time.
2) Smaller size structure and low power consumption, less than 1KW per hour.
Parameter:
Max. laser power 10W/20W/30W/50W
Wavelength 1064nm
Marking range (mm)
100×100(can be enlarged at 160×160,
250x250 or 380x380 optional)
Marking speed 15000mm/S
Repeat accuracy ±0.001mm
Cooling system Air cooler
Main machine dimension(cm) 53X43 X71
Weight of whole machine 60KG
Power supply 220V±22V/single phase/ 50Hz /7A
Overall power consumption 200W
Control system dimension Integration
