Zhengzhou Lead Equipment Co., Ltd. >> Lds2000g High Efficient Wet Shotcrete Machine Price

Lds2000g High Efficient Wet Shotcrete Machine Price

Name: Lds2000g High Efficient Wet Shotcrete Machine Price
Brand: china-manufacturer-directory.com
SKU: 704218092
Availability: InStock
Rating: 4.9 (105 reviews)

Supplier:	Zhengzhou Lead Equipment Co., Ltd.
Price:	US $ 7699-9999/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LDS2000G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hopper Volume:	240L
Hopper Rated Rev.:	76r/Min
Oil Tank:	130L
Hydraulic:	Yes
Usage:	Dome Building, Swimming Pool etc.
Application:	Pumping/Grouting/Spraying/Plaster
Power Option:	Diesel, Electric, Gasoline
Working Pressure:	1.5 MPa (Chinese Hose)/3.5 MPa (Trelleborg Hose)
Max. Aggregate:	10mm
The Squeeze Hose:	ID 50mm
Type:	Shotcrete
Machining Process:	Hydraulic
Certification:	CE
Condition:	New
Productivity:	6-8m3/H

Product Description

LDS2000G High efficient wet shotcrete machine price

Product Description

Description of used shotcrete machine

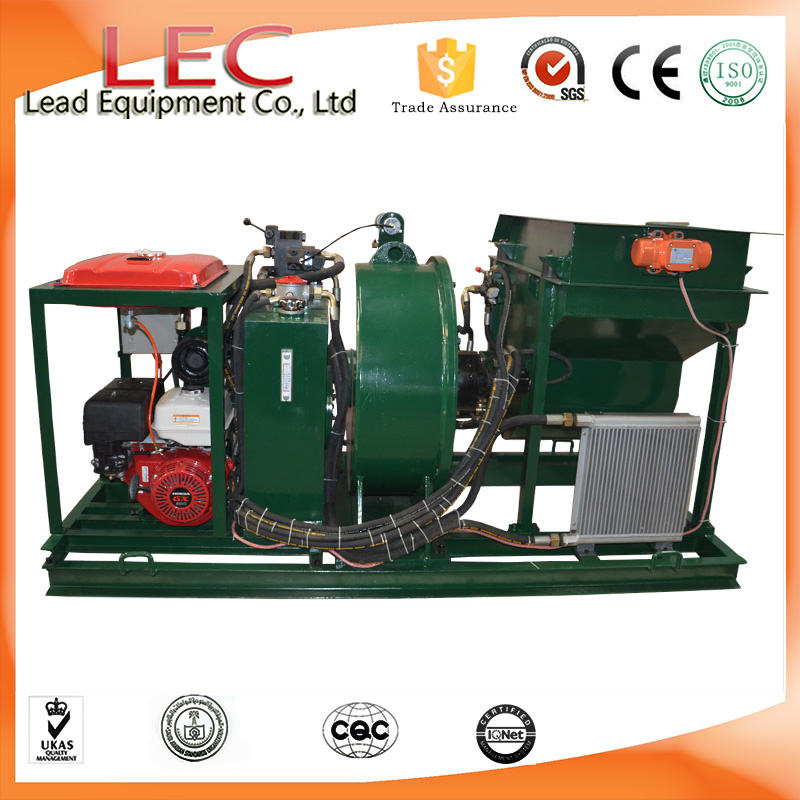

The LDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.

Features of used shotcrete machine

1) Highly-reliable direct drive planetary gearbox

2) Infinite speed variation

3) Specially hopper/ agitator stir design

4) Honda GX390 and GX630 gasoline engine for option

5) Easily operating on site work

6) Standard spare part supply

Technical Data Sheet of used shotcrete machine

Item	Description
Working Pressure	1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
Output	6-8m³/h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 50mm
Squeeze pump	GH50-680
Power	Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure)
Hopper volume:	240 Liter
Hopper rated rev.	76r/min
Oil tank	130 Liter
Requested air compressor	6m³/min, 0.6Mpa Pressure
Vertical Conveying Distance	15 m (Chinese Hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance	40 m (Chinese Hose)/80 m (Trelleborg Hose)
Weight	900kg
Overall Dimension	2350x1250x1450mm

Application

1. For pumping/grouting/spraying mortar/plaster

2. For pumping cellular light weight concrete

3. For pumping of wet normal concrete, acceptable max. aggregate size is 10mm

After-Sales Service

During-sale service of used shotcrete machine

1. Acceptance of the product

2. Assist client product construction scheme

After sale service

1. Spare parts will be delivered as you need.

2. Engineers will go to clients' site for guiding the installation and test-running;

3. Warranty period: 12 months since the installation and commissioning;

Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.

Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.

Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.

We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.

LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
