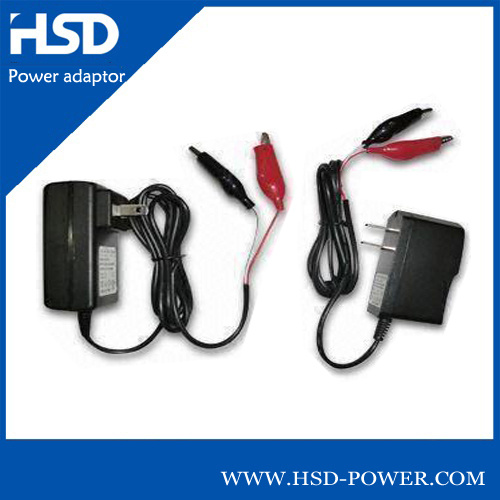

motor cycles battery charger
Input:100-240Vac 50/60Hz
Ouput:12Vdc 1.5A
Certificate:UL1310,CE,SAA,C-TICK,FCC part15
Universal Smart Charger for 12V
Lead-Acid battery,especial for motor cycles
.It is universal smart charger for 12.0V
Lead-Acid battery
.3-stages charging mode
1.Constant current;(1.5+/-0.1A)
2.Constant voltage;(14.3-14.7V)
3.Floating voltage. (13.5-13.8V)
cut-off current:250+/-50mA.
.Led indicate charging status:
Red---in charging; Green---fully charged
.Safety protection
Short circuit protection
Battery polarity error protection
Over voltage protection
.NO drain current from the battery even if AC power is off,
so you can always connect the charger to the battery.
.Input:100-240Vac 50-60Hz 1.0A
.Output:12Vdc 1.5A
.Safety:UL1310 EN60335-2-29,SAA
.EMC:FCC part15,EN55014,C-TICK
.Dimension:100.0x50.0x30.0mm
.Weight:200g.
|
Product Name |
Lead acid battery charger |
|
Input Voltage |
110-250V 50/60Hz |
|
Output Voltage |
5-24V |
|
Unit Weight |
198g |
|
Unit Size |
110*42*32mm |
|
Material |
Plastic |
|
Color |
Black |
|
OEM&ODM |
YES |
|
AC Cord Length |
Standard 1.2m(under you choose) |
|
AC Plug |
Standard UK,USA,EU,AU(for you choose) |
|
DC Cord Length |
Standard 1.0m(under you choose) |
|
DC Plug |
10 different standard tips |
|
Protection |
1.Over-voltage protection |
|
2.Over-current protection |
|
3.Over-power protection |
|
4.Over-load protection |
|
5.Over-temperature protection |
|
6.Short circuit protection |
|
Approval |
CE&ROHS&KC&SAA&PSE |
|
Guarantee |
2 Years |
We are professional electrical and power supply, electrical appliances, charge, LED driver, switching power supply.
