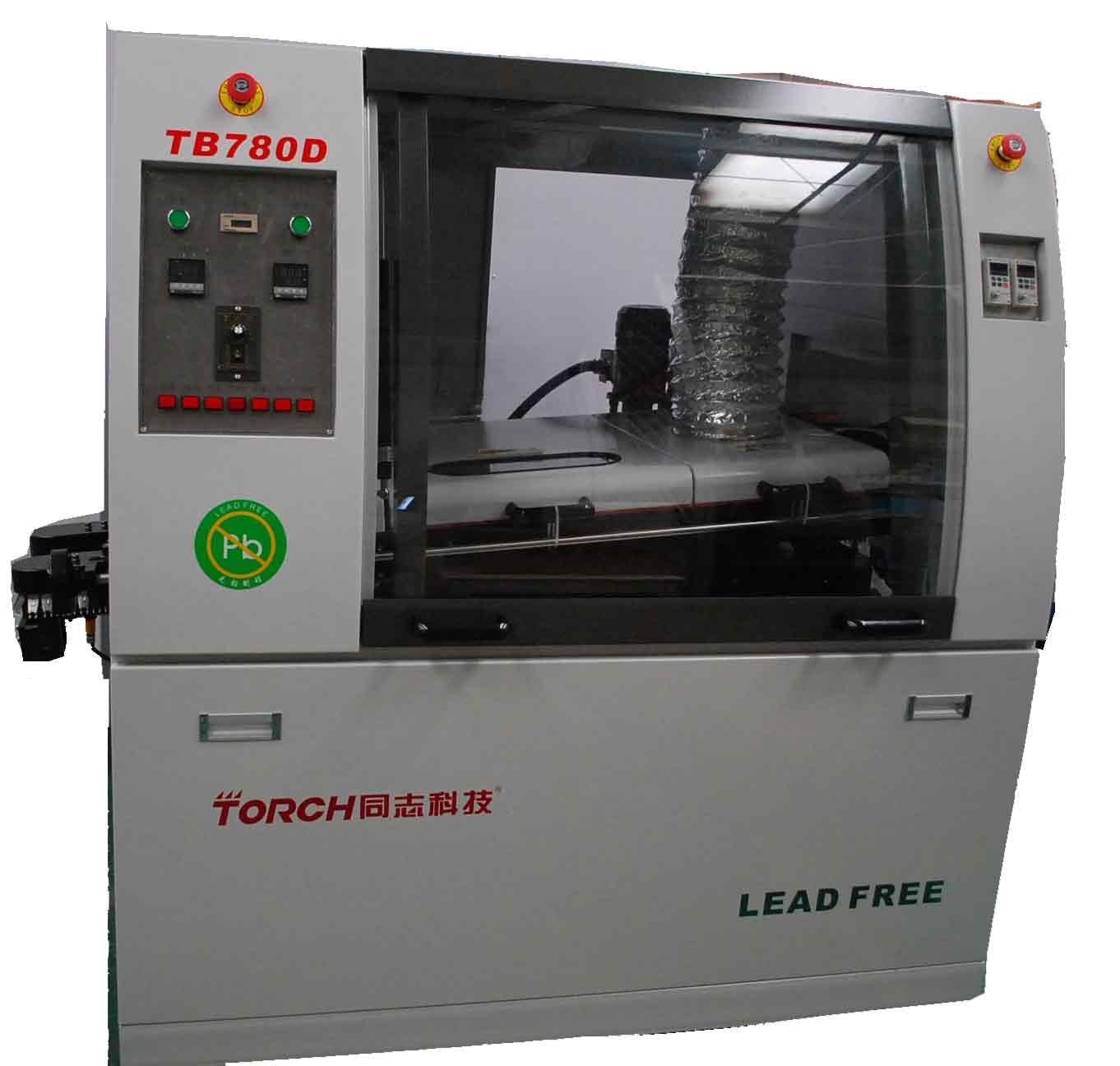

Product Specifications
| Prod Model: |
TB780D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
ARC Welders |
| Current: |
Alternating Current |
Product Description
Features and function:
IFlux spray system
A function of flux spray device
1 nozzle: Import nozzle, better spray
2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe
3 moving nozzle system: Air cylinder driven, spray speed and spray width can be adjusted by handle.
4 filtration flux system: Collecting device is made of multi collecting lay, it is convenient to clean.
5 flux controlling: Anti-corrosive controlling flux and display flux.
B function of flux foam device
with foam function, inner foam pump, it don't need outer air supply, it is convenient to spray flux.
1 preheating temperature range: Room temperature_260 degree
2 controlling way: with PID controlling to make welding process.
3 Heat: Infrared heating, temperature uniformity, rapid speed, PID supply heat.
4 Preheating security: Surface temperature is lower than fire point of flux.
5 Preheat: It can meet preheating need of batch PCB welding, uniformity temperature, small temperature differences of PCB.
II Welding system features:
1 Material: 316 stainless steel
2 Capacity: 100kg double wave crest capacity
3 Height range of wave crest: 0_8mm adjustment and keep wave crest balance.
4 Power consumption (heater): 6kw, uniformity heat, long life. It will take 1 hour to melt tin. This can save 6kw during melting tin and save 3kw during constant temperature.
5 Unique nozzle: Double wave crest design, with unique flat wave which is stable and reduce SMD leaking solder.
6 Heat controlling system: PID control, accuracy is +/-2
7 Moving tin pot: In and out can be finished by hand.
8 Motor of wave crest: Import motor, running stable.
9 Tin pipe: Screw thread stem
III Cooling system
1 Cooling motor: Unique cooling design, it can achieve import device effect.
IV Transmission system
1 chain: Stainless steel chain, anti-corrosive, ametabolic.
2 rail system: Special strong aluminum
3 speed: 0_1800mm/min
4 accuracy: Motor is from Taiwan, it is easy to adjust and maintain
V Controlling system
1 buttons on the panel: Manual/ automatic control, speed can be set, temperature can be display.
2 protect short circuit: with short circuit protection, with Sanling air switch protection in main power and tin pot of preheating zone, with fuse power in controlling system.
3 urgent stop protection: There are 2 urgent stop protection in the machine, please cut off power in urgent condition.
4 whole machine controlling: Relay controlling.
5 transmission speed: Taiwan motor makes sure stable speed.
6 wave crest: Taida transducer makes wave crest flatter.
7 over-current protection: Over-current protection with transducer, it will cut off power when current is over to make motor safe.
8 modularization wiring device: There are main wiring modularization and controlling modular
It is 2100mm when the machine include loading and cooling system.
|
|
Specification |
TB780D(double wave crest) |
|
1 |
Solder type |
Lead /lead free/ common solder |
|
2 |
Max PCB |
50—200mm |
|
3 |
Components height |
Above ≤130mm under ≤8mm |
|
4 |
Capacity |
100KG |
|
5 |
Preheating length |
600mm |
|
6 |
Temperature accuracy |
±2 |
|
7 |
Spray way |
Foam |
|
8 |
Temperature range |
Room - 300ºC |
|
9 |
Wave height |
0---8mm, keep balance wave crest |
|
10 |
Heating controlling |
PID |
|
11 |
Speed |
0—1800mm/min |
|
12 |
Start power/normal power |
12KW/6KW |
|
13 |
Preheating temperature |
Room—260ºC |
|
15 |
Width adjust |
Manual adjusting |
|
16 |
Transmit angle |
3---8 |
|
17 |
Direction |
Right--left |
|
18 |
Controlling accuracy |
Taiwan motor |
|
19 |
Weight |
650KG |
|
20 |
Dimension L x W x H(mm) |
1400*1000*1500MM
It is 2100mm when the machine include loading and cooling system |
Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
