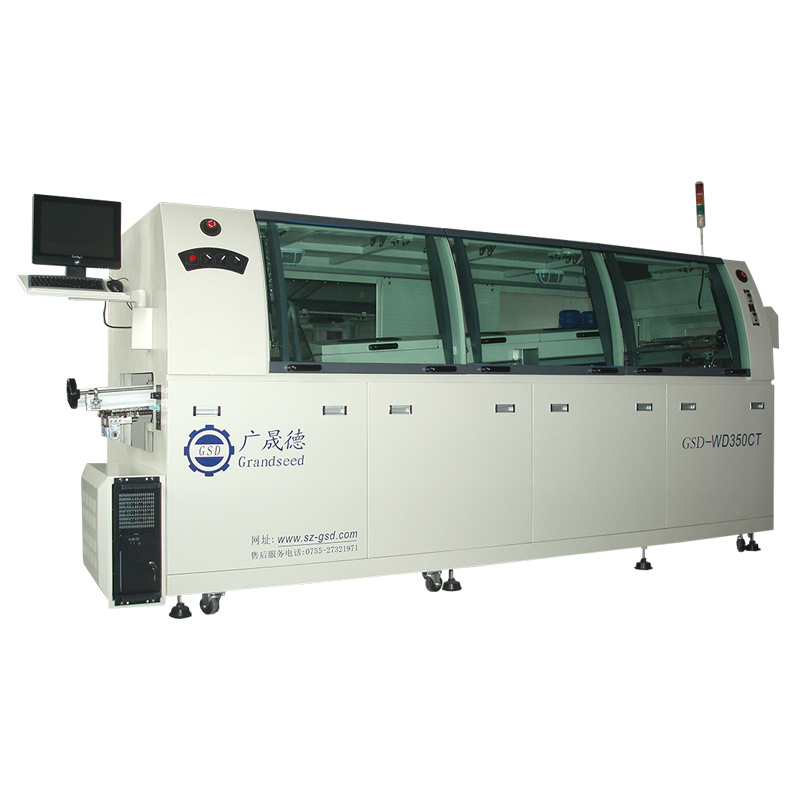

Lead Free Wave Soldering Ipc+PLC Control 6L Capacity Wave Solder Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
GSD-WD350CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
Alternating Current |
| Type: |
Wave Solder |
Product Description

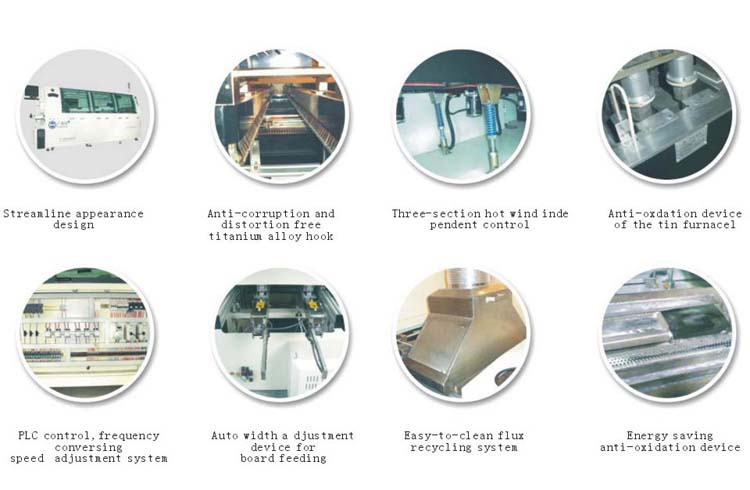

Features:Efficient,energy-saving,lead-free,environment-friendly,safe,andbrand-newdesigh,simple oreration,convenient maintenanceFull computer control with windowsXP interface,kinetic energy monitoring ,greatly improving the work efficiency and reducing the production costAutomatic power system,stepless frequency control,automatic board input systemFlux spray system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and Plc control ,accurate and reliablePreheating system uses 3-stage powerful air system,excellent heat preservation ,temperature warm-up ,temperature uniformity ,no more than ±2 degrees celsiusSpecial alloy transportation chain claws , non-stick tin,reinforced, and ensure the quality of welding PCB boardTin stoveadopts imported high frequency stepess conversion motor independent control,stable performanceLead-free solder furnace with independent design ,environment protection and safety , easy to cleanTin heating furnace uses high-speed PID and 2-stept independent outer heating control ,warm-up quickly and eliminates the flaws of stove tin explodesWith time controller ,can preset switch functions ,tin stove machine heating picks up in 90minutesWith black box memory function ,can always get at production management records , improve work efficiencyReasonable design of environment protection,and automatic washing claw ,ensure the cleaness of clawsThe design is reasonable and safe with sensitive fault alarm system ,to ensure the stable performance the safety of operators
|
ITEMS |
SPECIFICATION |
|
Control method |
PC+IPC+PLC |
|
Convey or motor |
1P AC220V,60W |
|
Convey or speed |
0-1800mm/min |
|
PCB size |
30-350mm(w) |
|
Fluxcapacity |
6L |
|
Pre-heating zone |
1800mm,room temperature--250ºC |
|
Solder pot temperature |
1KW*10PCS room temperature---300ºC |
|
Solder pot capacity |
350KG |
|
Wave motor |
3P AC220V,0.18KW*2PCS |
|
Finger cleaning pump |
1P AC220V 6W |
|
Convey or direction |
L→R (R→Loptional) |
|
Convey or angle |
3_6 º |
|
Flux pressure |
3_5BAR |
|
Power supply |
AC380V 50HZ |
|
Normalworkingpower/ |
8KW/25KW |
|
Outside dimension |
4300(L)*1400(W)*1700(H) |
|
Dimension |
3400(L)*1400(W)*1700(H) |
|
Net weight |
1200KG |
Grandseed is specialized in researching, developing, manufacturing and marketing lead free wave soldering, relow soldering, SMT peripheral equipment, and other electronic equipment. The company is well known in China depending on its quality products, complete product variety and considerate after-sale service from its powerful technical strength and advanced detecting measures.
The utility model lead free tin furnace is a patent product of the company on which it has the independend intellectual property. The unique anti-oxidation device equipped in the furnace has greatly reduced the cost of electronic manufacturing, and has made big contribution to the improvement of the PCB soldering workmanship in the field.
The company believes in an after-sale policy of "high efficiency and low charge", and always tries to satisfy every demand of all customers. We will continue to improve the company in the aspects of honesty integrity, and team work spirit, so as to gradually satisfy the requirements for an international standard enterprise. With the purpose of rewarding the country, honest operation and practical development, we will try our best to make Grandseed a famous international brand.
