Lead Ore Flotation Machine/ Beneficiation Machine/Flotation Separator
Product Specifications
| Prod Model: |
XJK-2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Lead, Zinc, Copper, Rock Phosphate, Fluorite Ore, |
| Installation: |
Provide Installation Service |
| Type: |
Flotation Separator |
| Condition: |
New |
Product Description
20 years professional ores benefication equipments producer; Lead upgrading machine, lead beneficiation machine.

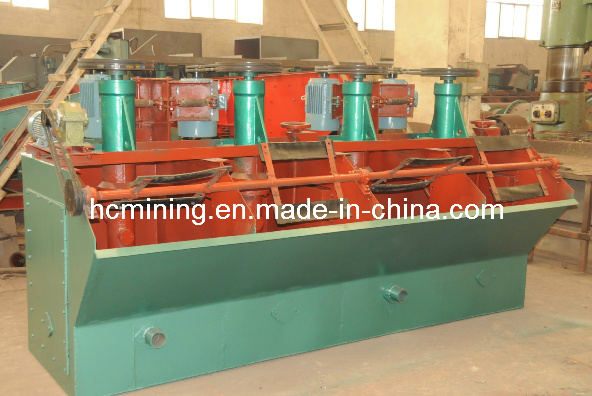

XJ mechanical agitating flotation machine is suitable for separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovering useful minerals. This machine has the features of the big suction capacity and low power consumption. Every slot has the triple function of suction, grout and flotation which become the complete flotation circuit without any auxiliary equipment installing the machine in a actinic line it will be easier for the flow process change, the rational slurry cycle and furthest reducing the coarse sand sinking.
|
Model |
XJK_2(A) |
XJK_3(A) |
XJK_4(A) |
XJK_5(A) |
XJK_6(A) |
XJK_7(A) |
Slot Volume
(m 3 ) |
0.23 |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
|
Impeller Dia.(mm) |
250 |
300 |
350 |
500 |
600 |
750 |
|
Impeller Speed (r/min) |
500 |
483 |
400 |
330 |
280 |
240 |
|
Capacity(m 3 /min) |
0.12-0.28 |
0.18-0.5 |
0.3-0.9 |
0.6-1. 6 |
1.5-3.5 |
3-7 |
|
Slot Size (mm) |
600×600
×650 |
700 ×700
×750 |
820×900
×850 |
1100×1100
×1000 |
1750×1600
×1100 |
2200×2200×200 |
|
Power(Kw) |
3/2 slots |
3/2 slots |
3 |
5.5 |
11 |
15 |
|
Weight(g/Slot) |
1158/4 |
1720/4 |
2500/4 |
4514/2 |
4514/1 |
7066/4 |
Gongyi Hengchang Metallurgical Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, Briquette equipments, coal preparation equipments, ball press equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer, gas industry etc.
In the last two decades, we always persist on the philosophy of "scientific and technological innovation, quality first, users first", and cooperated with a number of research institutes to form collaborative units, like Anshan Iron and Steel Research Institute, Nanning of Guangxi Nonferrous Metals Design and Research Institute, Henan Polytechnic University, invite and employ many senior engineers specialized in different fields to the factory for technical designing and supporting.
Science and technology as guide, constantly develop new products, improve product quality and perfect after-sales service, our plant successfully applied ISO9001: 2008 quality certificate and manage to design 10 to 5, 000 t/d mineral beneficiation equipment series production lines, 5 to 500, 000 t/d industrial briquette production line, our floatation machine is successfully applied to Zhong Ping Energy Chemical Group; Ball press series machine can briquette minerals powder, coal powder, plaster powder and other materials into a balls/ briquettes, which can be directly applied to the applications and smelting.
Our plant have been awarded "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, top 30 of key enterprises of the Gongyi government and bureau, products are welcomed by more than 20 provinces, municipalities and autonomous regions in China, and exported to South America, South Asia, Africa and other regions, products quality, technical supporting and after sale service are highly praised by users both home and abroad.
We welcome friends all over the world to visit our plant, persist on the mutual benefits and developments!
