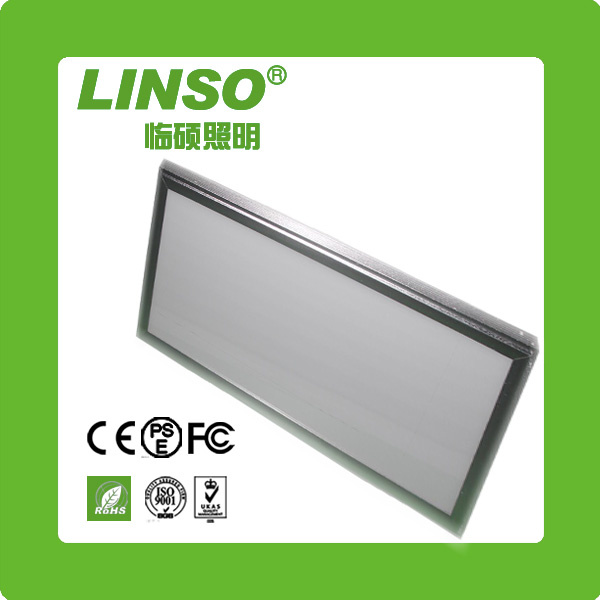

LED Ceiling Light Panel
1. Voltage: AC85-265V 36W
2. Angle: 120deg;
3. Lumen: 2700LM
4. Pure Aluminum: Sliver
5. Life-span: 50, 000hrs
6. CE, FCC, PSE, RoHS
Features
1. The newest style, small and compact design.
2. Ultra energy efficient, directly replacing traditional lamps;
3. Good heat dissipation with professional designed aluminum alloy housing;
4. Anti-glare, giving visual comfort;
5. Isolating circuit design, safety and reliability;
6. Solid-state, fast turn on;
7. No mercury, less CO2 emission, eco-friendly to the environment;
8. No UV, No IR;
9. Better thermal management, no heat damage;
10. Easily installed into standard fixture;
11. Longevity of service and minimal maintenance
Applications
1. Illumination lighting for homes, offices, restaurants, hotels, malls, buses, Trains, warehouses, parking lots etc.
2. Task lighting for cabinets, cupboards etc in your homes, restaurants, and Kitchens or any other places where accent lighting is required.
3. Display lighting for the articles in your stores and shops.
4. Back lighting for square billboards or advertisement boards.
|
LED Panel Lights |
|
|
Model |
Specification |
Voltage |
Color
(Optional) |
Color Temperature |
Beam Angle |
Power
(W) |
LED Nos.
(pcs) |
LM |
Remarks |
|
LPL0612-72 |
600*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
72 |
704 |
4500-5500 |
1. Imported
LEDs Lms3014
2. Outside Constant Current Driver
3. Aluminium Alloy Frame, Milk Diffuser Plate |
|
LPL0612-54 |
600*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
54 |
528 |
3300-4000 |
|
LPL0312-72 |
300*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
72 |
704 |
4500-5500 |
|
LPL0312-36 |
300*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
36 |
352 |
2200-2770 |
|
LPL0312-48 |
300*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
48 |
484 |
2900-3300 |
|
LPL0312-54 |
300*1200*12mm |
AC110-270V |
White |
2700-8000 |
120° |
54 |
528 |
3300-4000 |
|
LPL0606-72 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
72 |
704 |
4500-5500 |
|
LPL0606-54 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
54 |
528 |
3300-4000 |
|
LPL0606-48 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
48 |
484 |
2900-3300 |
|
LPL0606-48-2 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
48 |
100 |
2900-3300 |
|
LPL0606-36 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
36 |
352 |
2200-2770 |
|
LPL0606-27 |
600*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
27 |
264 |
1900-2100 |
|
LPL0309-31 |
300*900*12mm |
AC110-270V |
White |
2700-8000 |
120° |
31 |
308 |
2000-2100 |
|
LPL0306-36 |
300*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
36 |
360 |
2200-2770 |
|
LPL0306-18 |
300*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
18 |
180 |
1100-1300 |
|
LPL0306-27 |
300*600*12mm |
AC110-270V |
White |
2700-8000 |
120° |
27 |
264 |
1600-2000 |
|
LPL0303-36 |
300*300*12mm |
AC110-270V |
White |
2700-8000 |
120° |
36 |
360 |
2200-2770 |
|
LPL0303-18 |
300*300*12mm |
AC110-270V |
White |
2700-8000 |
120° |
18 |
180 |
1100-1300 |
