LED Curve Display, LED Round Display

Name: LED Curve Display, LED Round Display
Brand: china-manufacturer-directory.com
SKU: 697070702
Availability: InStock
Rating: 5 (96 reviews)

Supplier:	Shenzhen Myled Optech Co., Ltd.
Price:	US $ 100/Piece
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	P10, P12, P16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	960*960mm
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	ETL
Pixel Pitch:	10mm
Display Function:	Video Display
Application:	Advertising
Scanning Mode:	Static Scan
Pixel Density:	10000 dot / m²
Average Power Consumption:	180W / m²

Product Description

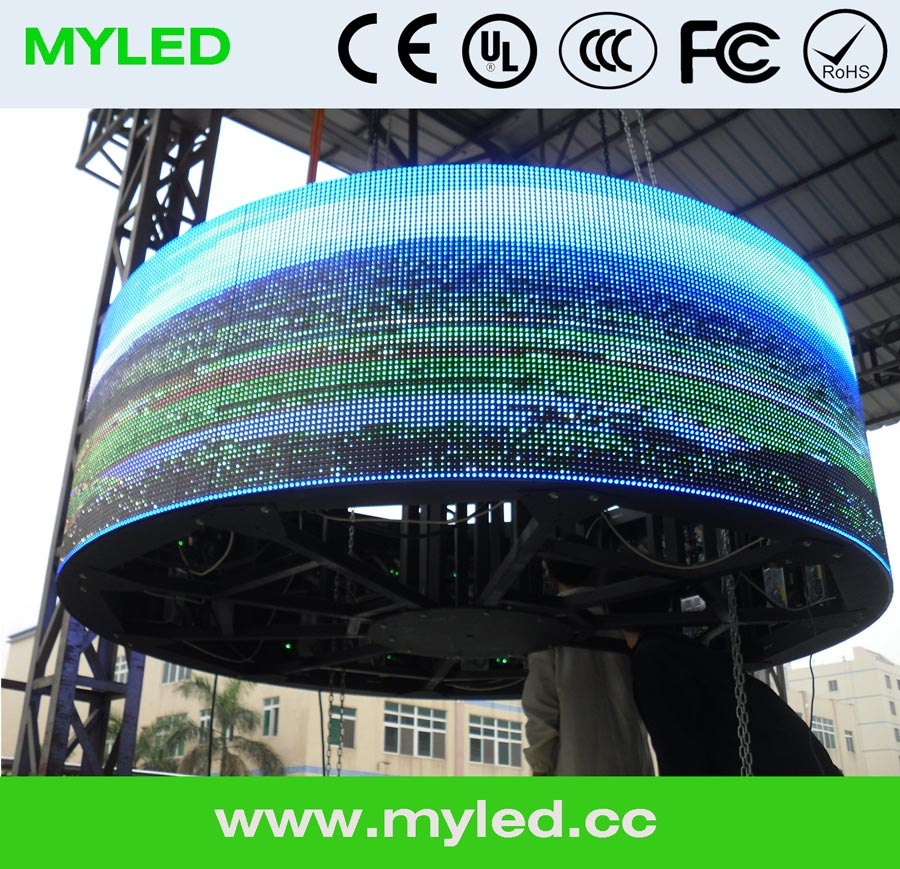

1.MYLED Curve LED Display description
LED screen can be fully used to replace traditional advertising media tools,furthermore,LED video wall has unmatched display and visual experience.Apexls develop the LED ball display under these conditions.With the high difficulties on the design and production, LED global display is an important milestone in the development of the LED display.

2. MYLED Curve LED Display characteristics
Customized
Can be customized required as any sizes and any pixel pitches.

Application
For outdoor or indoor.

Installation
Support hanging installation, stand on ground or mobile using.

Viewing angle
Perfect viewing angle with 360 degree.

Controlling
Both synchronous and asynchronous control way is available for LED balls.

Effect
The creative appearance and wonderful showing effect attracts most attention during the usage.

Structure
Aluminum material structure which lighter weighs and better for heat dissipation.

Design
Special PCB design which can make sure the showing picture distortionless.

Maintain
Support front and rear maintenance.

3.MYLED Curve LED Display application place
Museum, Planetarium, Exhibition, Sports Stadium, Airport, Hotel, Railway Station, Shopping Mall, Bar. etc.

1. Durable fresh color and High brightness

65536 grey scale and the 281 billions color and more than 1200 HZ refresh rate ensure wonderful video color presentation

Patented design of anti-glare mask with high temperature resistant coating on the surface to absorb direct light, reduce glare, and improve the contrast ratio of display.

Strictly selected LED lamps, high-consistency constant current driving IC, and high-end control system, supporting high brightness and high color uniformity.

2. Energy Saving

Adopt high-brightness LED with low consumption and 90% efficiendy power supply saving 20% power energy.

Additional temperature, display and brightness management can also save5% power energy.

3. Stability and reliability

Precise manufacturing process keeps the modules rugged and durable.

IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display to work in all weather outdoor environments.

Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use.

4. Convenient

Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and display mode as VGA+VIDE and VGA.

Display all kinds of word, text, graph, picture, video, 2-dimensional, 3- dimensional animation and TV and VCD other information with your PC does synchronously.

Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.

Specification	P10 outdoor full color
Pixel pitch(mm)	10mm
LED Type	346
Pixel composition	1R1G1B
Scan method	1/4
Screen brightness(cd/sqm,nit)	>6500nits(adjustable)
Average power consumption(W/sqm)	210
Maximum power consumption(W/sqm)	720
Module resolution(dot)	32dotsX16 dots 16dotsX16dots
Module size(mm)	320mmX160mm 160mmX160mm
Pixel density(dots/sqm)	10000dots
Viewing distance(m)	5-150m
Cabinet weight(kg/sqm)	50kg(Iron)
Driving method	Constant current
Color show	17-69G
Brightness adjusted	256gray grade
Gray correction	256-4096
Image adjustment	Contrast, hue adjustment
Refresh rate	300-2440HZ/S
Frame frequency	>60HZ
Interface port	VGA+DVI Graphic card
Display mode	640X480,800X600,1024X768.2048X640
Control mode	Led display and computer is dot by dot
Communication distance	Cable 5<=130m, Multimode optical fiber<=500m single mode fiber<=10km
Vedio source	TV VCD DVD
Continuous use time	>72hours
Life span	>100,000hours
Scatter OOC Point	<0.01%
Continuous OOC Point	0.1%
Protection grade	indoor IP54, outdoor IP65
Working temperature(Celsius degree)	-35~+60'
Working humidity(RH)	Indoor 10~60% outdoor 10~90%
