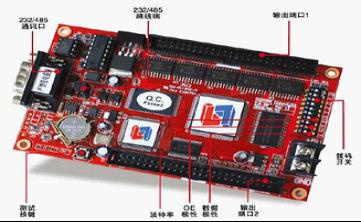

LED Display Control System (LS-N1/N2)

Product Specifications

Prod Model:	LS-N1/N2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

LED Controller

Industrial Performance: Adopt industrial Chips, low voltage to start, +5 V voltage reverse protection; DIP-chip to make sure more reliable communication, RS485 reverse protection, anti-static protection;
Rapid isolation for the optocoupler of unique 485, separate power supply, powerful load capacity, protect the serial port;
Hardware watchdog to avoid the system crash problem caused by the voltage instability or electromagnetic interference;

Any partitioning software: Any partitioning software, flexible operation, easy to use; Support 255 programs to playback, support programs broadcast regularly;
40 kinds of special effects, enter/exit can be set; Continuously moving for the text of single line without spaces, support different font sizes and color choices; Support for analog clock and animated, support screen testing; Program files can be copied, supportting programs to save and load the file.
Detailed development document: VC, VB, Delphi develop package, dynamic library DEMO and source code; 16, 32 fonts communication protocol and testing software, customers can add a special character.

Real-time update, electronic billboards, railway stations, bus stations, rail transportation, the hospital queuing number, bank cluster display, GPRS in meteorology and other typical cases.
Applications: Olympics project: Beijing Olympic Games BRT bus LED display; Expo Project: Shanghai World Expo bus station LED display; Rail transportation: Shanghai Metro line 1, 3, 4, 6, 8, station arrival display; Bus System: Bus arrival/starting, ticket checking, ticket status, load status of the long-distance bus; High-speed railway: LED guide display in the station, Train arrival/starting, ticket status;

International Airport: Release the starting access information in Pudong International Airport; Hospital & School: Hospital calling line display, release the information in school; Industrial field: Electronic billboards of the industrial production line in GM(General Motors Corporation), NAC MG, Geely Automobile and so on; Wireless Applications: SmartLED display in R&G traffic lights, weather warning LED display, GPRS advertising in highway;
User-friendly design: LED Player3.1 software compatible with the full range of control cards; RS232 and RS485 communication without the jumper, and also supports GSM / GPRS communications; Smart settings for outdoor scan, supportting the mainstreaming of 1/16, 1/8, 1/4, 1/2 static routing; Search function with a control card, the screen parameters, scan settings for back to read function; Solve manufacturers' collection difficult problem, you can set the deadline, cancel the deadline; With screen test button, easy for debugging;

LS-N1/N2 parameters:
Item No. N1 N2
Range 1024*256(256K pixels) 2048*256(256K pixels)
Scan mode 1/16, 1/8, 1/4, 1/2, static routing 1/16, 1/8, 1/4, 1/2, static routing
Scan interface 1*50PIN interface 1*50PIN interface
Communication mode RS232, RS485 RS232, RS485
Wireless communication Support GSM, GPRS, RF Support GSM, GPRS, RF
Memory 2M Bytes 2M Bytes
Extend interface Temperature sensor, test button, switch Temperature sensor, test button, switch
Player LED Player 3.1 LED Player 3.1
