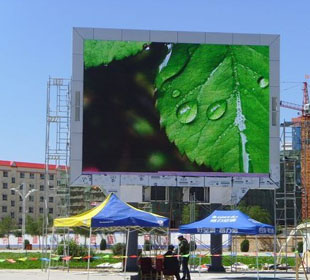

LED Display (HX-OF10)

Name: LED Display (HX-OF10)
Brand: China-Manufacturer-Directory.com
SKU: 715910535
Availability: InStock
Rating: 4.4 (102 reviews)

Supplier:	Shanghai Harse Electromechanical Technic Co., Ltd.
Price:	US $ 1100/Square Meter
Min Order:	5/Square Meter
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	HX-OF10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Application:	Advertising
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	10mm
IP Rating:	IP60
Certification:	CE
Pixel Density:	10,000 dots / m²
System Operating Platform:	WIN2000

Product Description

Function and Technology Character

(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Display and control feature		Structure feature
Specification	Parameter	Specification	Parameter
Pixel Pitch	10 mm	Module size	160 mm*160 mm
Pixel composing	1R1G1B	Display resolution/module	16 dots*16 dots
Wavelength (R)	625±5	Standard cabinet size	1280 mm*960 mm
Wavelength (G)	522±3	Weight per sqm	65 Kg/sqm
Wavelength (B)	567±3	Protection classification	IP65
Wave Angle (H)	140°(H)/ 60°	Install mode	Wallmount, hung and stand structure
LED package	DIP 346	Cabinet Material	Iron/Aluminum
Density per sqm	10,000 pixel	Working power
Display color	256256256	Specification	Parameter
Whiteness brightness	≥5500	Working voltage	AC 220v/380v±10% 47~64Hz
Brightness level	128 grade	Max power/sqm	750W/sqm
Changing frame frequency	60 Hz	Average power/sqm	400W/sqm
Refresh	400 Hz	Short circuit protection	Yes
Driving method	1/4 Constant Driving	Led Lamp type	Nichia/Cotco/Cree/Axt/Silan/Taiwan
Control mode	synchronous	Working environment
Display port	DVI	Specification	Parameter
Display mode	1024768 /10241024	Environment	Outdoor
Out of control	1/10,000 ( scattered)	Working temperature	--20~50
lifetime	100,000 hours	Working Humidity	10~90%

Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.

"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.

Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.

Welcome to our Showroom and My Products for more detailed offer info.
