Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Indoor |
| Tube Chip Color: |
Full Color |
| Certification: |
CE |
| Display Function: |
Digital |
Product Description

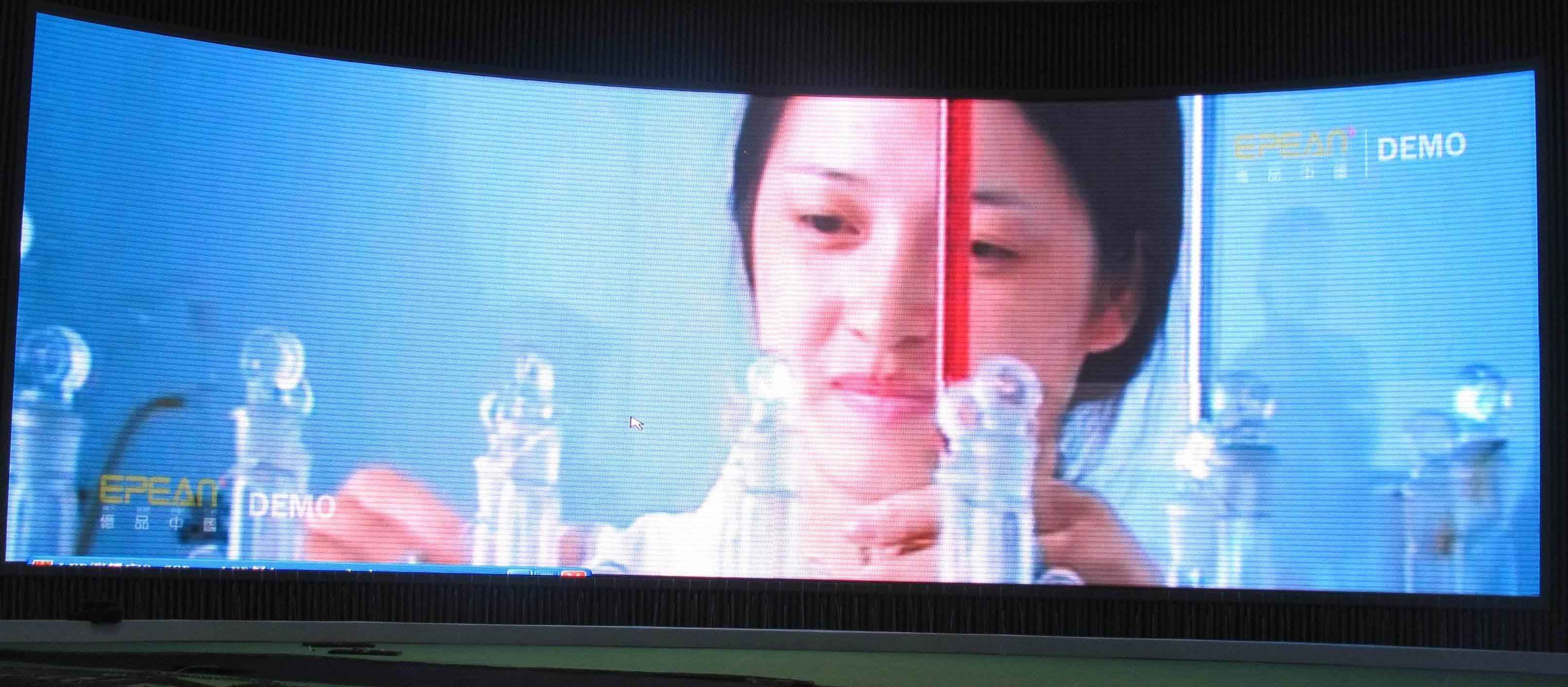

High Definition Indoor LED Display
|
Model: Indoor P10 |
|
Pixel pitch |
10mm |
Module size |
320x160mm |
|
Pixel configuration |
1R1G1B |
Module density |
32x16dots |
|
View angel |
140° /140° |
Pixel density |
10, 000dots/sqm |
|
LED encapsulation |
SMD1616 |
Refresh Rate |
≥ 400Hz or ≥ 2000Hz |
|
Driving Method |
1/8 scan, constant current |
Max power consumption |
600w/sqm |
|
Brightness |
> 1100nit |
Type Power consumption |
300 w/sqm |
|
Working voltage |
AC110/220V |
Working temp |
-20C Degree to +60C degree |
|
Best viewing distance |
> 8 m |
Dead dot rate |
< 0.0001 |
|
LED parameters |
R: 625nm± 5.0nm; IV: 180-200mcd |
MTBF |
> 5, 000hours |
|
G: 525nm± 2.5nm; IV: 95-105mcd |
Gray Level |
> 8192 grade |
|
B: 470nm± 2.5nm; IV: 330-360mcd |
Lifespan |
> 100, 000hours |
|
Image processing |
Video denoising, rapid motion compensation, edge sharpening, edge smoothing,
color coordinate conversation& control, grey scale transformation etc |
|
Brightness uniformity |
Ratio of min pixel brightness /max pixel< 0.9(When each color reaches its highest brightness) |
|
Effective control distance |
Cat-5< 100M, Multi-mode fiber: < 500M; Single-mode fiber< 20Km |
|
Color Temperature/contrast |
Brightness and contrast of red, green and blue can be adjusted by software,
100 scales are available, color temperature is adjustable |
|
Input signal |
RF, S-VIDEO, RGB, RGBTV, YUT, YC, COMPISITION |
|
Control system |
Sending card +Receiving card +Hub card +DVI Card +PCTV Non-liner card + Muti-function card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional) |
Shanghai linso technology co. Ltd devoted to the global low-carbon and energy saving business is a hi-tech enterprise integrated with research, development, production and after-sales service of providing LED solution and LED products including LED display, advertising LED truck and LED lighting etc. With the advanced management mode, powerful R&D ability and rich resources of home and abroad, we are constructing an international LED industry platform. And we are making untiring effort to improve the global living environment and lead the LED industry according to the market demand, industrial chain operating model and completed product system.
Our headquarters is in Shanghai nanxiang high-tech park, and has the branch in Beijing, yunnan, jiangsu and zhengjiang province having more than 200 staff with rich experience, professional skills, outstanding technology and management team. At present our workshop area is about 8, 000 square meters and we spend thousands of million in introducing the automatic production lines and advanced production equipment as well as perfect testing instrument. Our output value is over billion. Enterprise strictly complies with ISO9001: 2008 international quality management system and our product has passed the international and domestic technical testing: CE, 3c, FCC, PSE RoHS certification and so on.
Shanghai linso technology co. Ltd adheres to the high-end product line to establish domestic and foreign trade according to our operation principle "marketing products, marketing brand and marketing network". Marketing policy "internationalization, brand and famous brand" is carried out to break through the high-end market. We enjoy the great global reputation by competitive price and perfect after-sales service! Long business relationship and strategic partnership with more than 60 countries, such as the United States, Japan, south Korea, Brazil, Spain, Italy, Russia, have been built to win the stability of the international market.
Adhering to "colorful life, healthy earth" brand concept, linso technology co. Ltd insists on simultaneously developing product and brand strategy and resolves to be the most trusted LED comprehensive application products and professional LED application solution supplier in the world. Linso is willing to contribute to human "low-carbon, energy saving, green and health" business.
