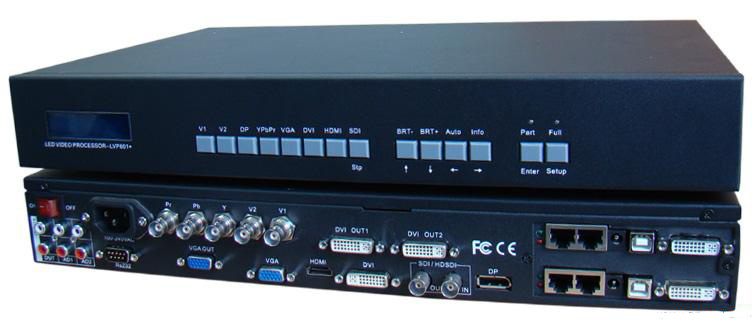

LVP602S+/LVP602+LED video processor
System application: LED Video Screen used
* A new generation of professional LED video processor Clearer and more fluent image, stronger functions, easier to operate and setup. * 1920 x1080 full high-definition input and output for single machine
Features
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. Advanced 4-symbol LUT for H and V Shrink & Zoom Scaler
6. Independent H & V Scaling Ratios
7. 10-bit Processing
8. HDMI 1.3A with HDCP, HD 1080p input
9. SDI. HDSDI(1080I) Input
10. 1920 x 1080 p or 1600 x 1200 output for single machine
11. Fast 64-level output brightness adjustment
12. Easy setup and adjustment through keys on the panel
13. Press keys on frontal panel to directly select 8-channel input signal source,
Including: 1 x SDI/HDSDI 1 x HDMI(with HDCP) 1 x DVI
1 x VGA 1 x DP(DisplayPort) 2 x CVBS
1 x YPbPr
14. 2 channels can be configured to connect external stereo audio, plus DP, HDMI and SDI audio, there are 5-channel audio for synchronous switch
15. 2 LED Transmission Cards Built-in ability (The processor does not include the Transmission card! )
Inputs | ||||
Nums/Type |
2× Composite video 1× D/P(Display Port) 1× YPbPr 1× VGA (RGBHV) 1× DVI 1× HDMI 1× SDI ( HDSDI ) |
|||
Video system |
PAL/NTSC |
|||
Composite Video Scope/Impedance |
1V (p_p) / 75 Ω |
|||
VGA Format |
PC ( VESA ) |
≤ 1600x1200 @60HZ |
||
VGA Scope/Impedance |
R, G, B = 0.7 V (p_p) / 75Ω |
|||
DVI Format |
SD/HD(EIA-861B) |
≤ 1920x1080P @60HZ |
||
PC(VESA) |
≤ 1600x1200 @60HZ |
|||
HDMI Format ( HDCP ) |
SD/HD(EIA-861B) |
≤ 1920x1080P @60HZ |
||
PC(VESA) |
≤ 1600x1200 @60HZ |
|||
DP Format |
SD/HD(EIA-861B) |
≤ 1920x1080P @60HZ |
||
PC(VESA) |
≤ 1600x1200 @60HZ |
|||
YPbPr Format |
SD/HD(EIA-861B) |
≤ 1920x1080P @60HZ |
||
YPbPr Scope/Impedance |
Y= -0.3V ~ +0.7V (p_p) / 75Ω Pb= -0.35V ~ +0.35V (p_p) / 75Ω Pr= -0.35V ~ +0.35V (p_p) / 75Ω |
|||
SDI Format |
SDI-SMPTE 259M-C |
576i @50HZ 480i @60HZ |
||
HDSDI Format |
HDSDI-SMPTE 292M SMPTE 274M/296M |
1080i @50HZ/60HZ 720P @60HZ |
||
Input Connectors |
VGA: 15pin D_Sub(Female) DVI: 24+1 DVI_D YPbPr: BNC× 3 Composite video: BNC D/P: Display Port SDI/HDSDI: BNC |
|||
Outputs | ||||
Nums/Type |
1× VGA ( RGBHV) 2× DVI |
|||
VGA/DVI Format |
1024× 768@60Hz/75Hz , , , , 1280× 1024@60Hz/75Hz 1600× 1200@60Hz 1920× 1080p@50Hz/60Hz |
|||
VGA Scope/Impedance |
R, G, B = 0.7 V (p_p) / 75Ω |
|||
Output Connectors |
VGA: 15pin D_Sub(female) DVI OUT1: 24+5 DVI_I DVI OUT2: 24+1 DVI_D |
|||
Others | ||||
Control |
Panel Button |
|||
Power |
100-240VAC 60W 50/60Hz |
|||
Operating Temp |
5-40 ° C |
|||
Humidity |
15-85% |
|||
Size |
155 mm (high) × 350mm (wide) × 485mm (length) |
|||
Weight |
5.6 Kg |
