Enbon Optoelectronics Limited >> LED Display Screen-P10 Curve Outdoor LED Display

LED Display Screen-P10 Curve Outdoor LED Display

Name: LED Display Screen-P10 Curve Outdoor LED Display
Brand: china-manufacturer-directory.com
SKU: 682545732
Availability: InStock
Rating: 4.5 (100 reviews)

Supplier:	Enbon Optoelectronics Limited
Price:	US $ 480-500/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	LED Display Screen-P10 Curve Outdoor LED Display
Cabinet Size(WHD):	960 W(mm)*960 H(mm)
Brightness (White Balance):	7500CD/Sqm
Net Weight:	55 Kg/Sqm
Refresh Rate:	>2000Hz /S
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	RoHS
Average Power Consumption:	250W/Sqm

Product Description

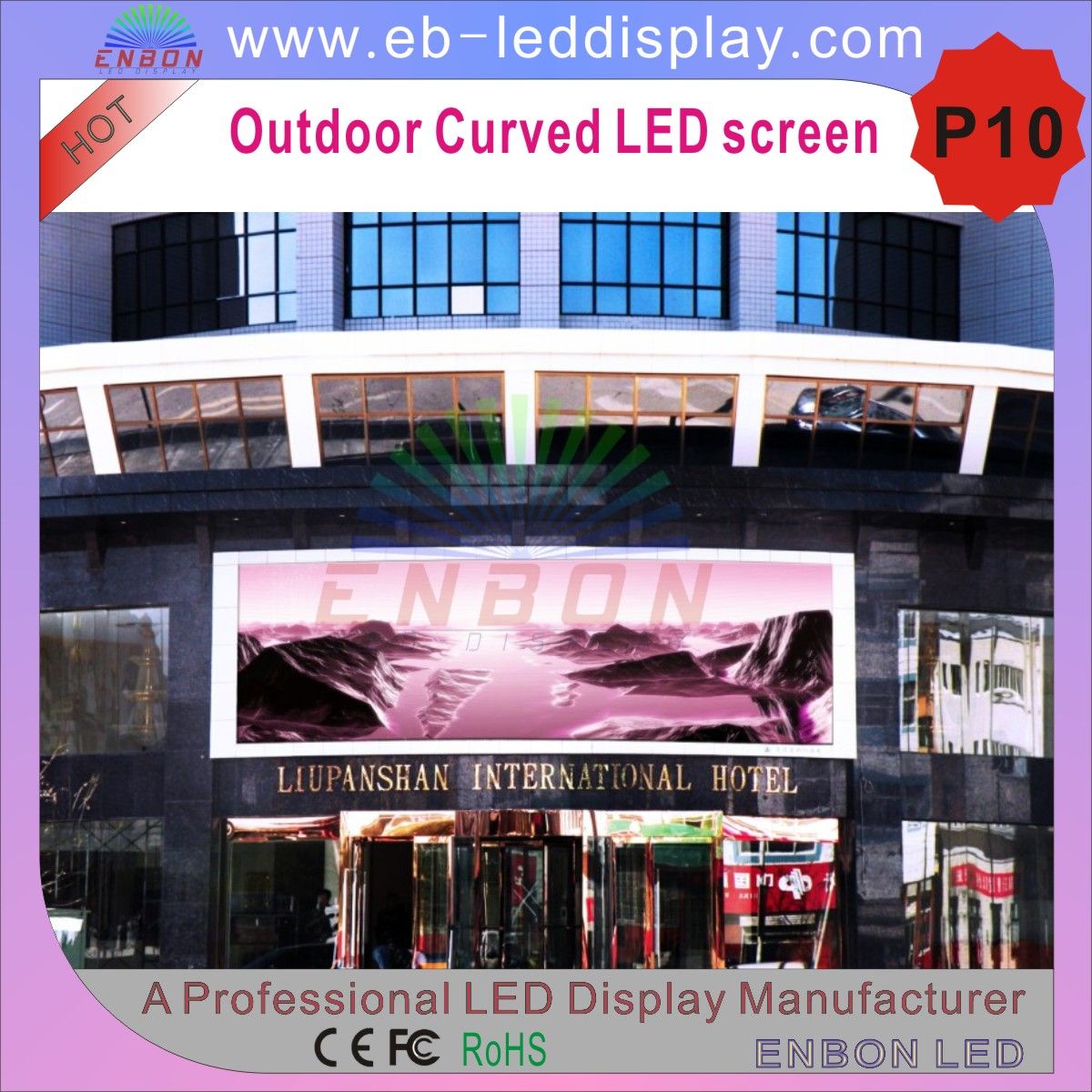

Irregular shape LED screen can be arced LED screen, Circle LED screen, cylindrical LED display. The radian degree can be designed according to the radian of construction. A graceful curve makes your screen very unique and beautiful!

ENBON curve LED Display features:

1. Radian is elegant, no big gap between adjacent cabinets;

2. The radian degree can be designed according to the radian of construction

3. Concave design and convex design are both available

4. Front maintenance is possible

5. IP65 waterproof standard for outdoor screen.

6. High brightness, High refresh rate and quality is very stable

7. Material of cabinet can be coated iron or aluminum

8. Competitive prices

Technical Prameters
PROJECT	P10 Curved LED screen
Pixel pitch	10mm
Pixel density	10000 Pixels/sqm
Module size(W*H)	160 W(mm)	160 H(mm)
Module pixels(W*H)	16 Pixels(W)	16 Pixels(H)
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1/4 scan
LED lamp type	Epistar DIP346
Cabinet size(WHD)	960 W(mm)	960 H(mm)	( Optional )
Cabinet resolution	96 Pixels(W)	96 Pixels(H)
Color scale	65,536 degree
View angle(H/V)	110/70 degree
Brightness (White balance)	≥7500cd/sqm.
Power consumption(one cabinet)	Max:750W/sqm. Average:250W/sqm.
Operating Voltage	AC100V±10% or 220V ±10%; 50---60HZ
Net weight	55 Kg/sqm
Operating temperature	-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity	10%_95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.1mm Juncture
Frame frequency	>60 Hz/s
Refresh rate	≥2000Hz /s
Control distance	100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50--60Hz
LED control system	LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system	Windows 2000 / Windows Xp / Windows 7
Protections for outdoor display	IP65
Maintenance way	Rear Access
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
