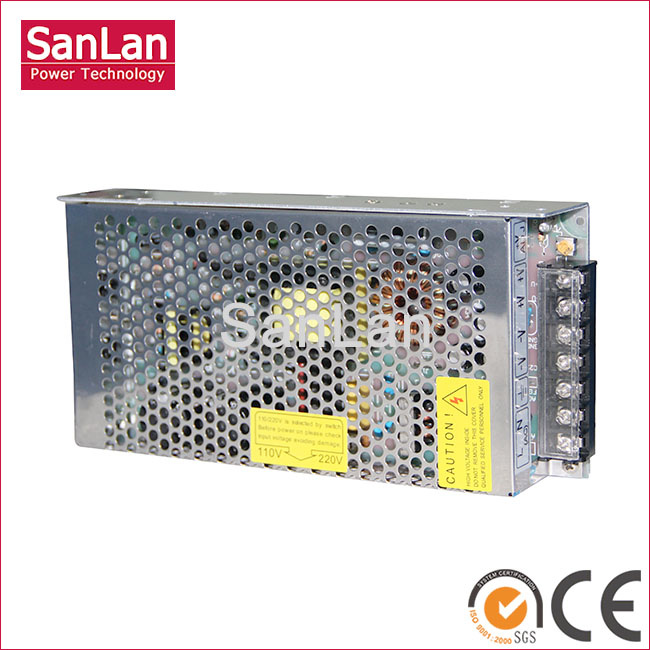

LED Display Switching Power Supply (SL-120-12)
Product Specifications
| Prod Model: |
SL-120-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
LED Display Switching Power Supply (SL-120-12) |
| Dimension: |
200X111X49mm |
| PCB Material: |
Fr-4 or F-22 |
| OEM&ODM: |
Support |
| Custom Service: |
Support |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
SGS |
| Voltage Regulating Mode: |
Constant Voltage |
| Brand: |
Threelan |
Product Description
led display switching power supply (SL-120-12)
Feature
(1). Low Price, high quality and reliability.
(2). Fast and free sample.
(3). 100% full load on test.
(4). Direct factory
Our service
(1). Your email will be reply within 24hours.
(2). All questions will be answered by our engineer.
(3). We have strictly management on the production and quality control.
(4). We are real factory and have professional engineers team, can provide custom and OEM service.
(5). We are greatly to accept the sample order for testing our quality, serive and your market.
(6). Free sample.
Why Choose SanLan Power Supply?
1. Our capability
We are specialized in making a variety of power supply. Sanlan's strength lies in the supply of completes Service ranging from the design solution to the mass production and after service.
2. Quality
It's priority among priorities, all of our power supply must be tested strictly according to the standard and client's extra requirements.
3. Price
In brief, we are real factory instead of trade company, welcome to visit our company for discuss everything.
We are direct and real factory, have professional engineers team, support personalized custom and OEM/ODM service.
Greatly to accept the sample order for testing our quality, serive and your market.
Hope to hear from you soon
|
Model |
SL-120-5 |
SL-120-12 |
S-120-18 |
SL-120-24 |
SL-120-36 |
SL-120-48 |
SL-120-60 |
|
Output |
DC voltage |
5V |
12V |
18V |
24V |
36V |
48V |
60V |
|
Rated power |
24A |
10A |
6.7A |
5A |
3.4A |
2.5A |
2A |
|
Current range |
0-24A |
0-10A |
0--6.7A |
0-5A |
0--3.4A |
0--2.5A |
0--2A |
|
Power |
120W |
120W |
120W |
120W |
120W |
120W |
120W |
|
Ripple & Noise (max.) |
95mVp-p |
120mVp-p |
130mvp-p |
140mVp-p |
140mVp-p |
150mVp-p |
160mVp-p |
|
Voltage ADJ.range V |
4.2--6.4 |
9.5--14.6 |
15.8--21 |
21--26.5 |
30.5--40 |
42.5--55 |
55--64 |
|
Setup, Rise Time, Hold up time (Typ.) |
200ms,40ms,30ms/230VAC. |
|
Input |
Voltage range |
95VAC--265VAC(By switch)47~63Hz,upper bound280VAC |
|
AC curren |
4A/115V 2A/230VAC |
|
Efficiency |
76% |
78% |
80% |
80% |
82% |
83% |
85% |
|
Inrush current |
CCA,coolstartcurrent15A/230VAC 30A/115VAC |
|
Leakage current |
<3mA/230VAC -115VAC |
|
Protection |
Overload |
Rated output power 115%~135% |
|
Shut down o/p voltage, re-power on to recover |
|
Over voltage |
135% |
120% |
120% |
115% |
120% |
110% |
110% |
|
Shut down o/p voltage, re-power on to recover |
|
Over temperature |
Shut down o/p voltage, recovers automatically after temperature back to normal |
|
|
|
Environment |
Working temperature, humidity |
-15degrees~+65degrees;20%~90%RH |
|
Storage temperature, humidity |
-20degrees~+85degrees;10%~95%RH non=condensing |
|
Safety |
Withstand voltage |
0.5KVAC :1.5KVAC output:1.5KVAC |
|
Insulation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|
Compliance Standard |
Safety standard |
Compliance UL1012 |
|
EMC Standard |
Compliance EN55022,CLASSA |
|
Others |
Package |
g |
|
Dimension |
199*98*4 |
|
|
|
|
|
|
|
Remarks |
1. All parameters are measured at 230VAC input, rated load and under 25 degrees, unless specified. |
|
2. Ripple and noise voltage is at 20MHz of bandwidth 12 inches twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. . |
|
3. Tolerance: includes set up tolerance, line regulation and load regulation . |
Shenzhen sanlan power supply technology Co., Ltd is located in prosperous shenzhen longhua new district, is a collection research and development design, production, sales for the integration of enterprises, is the LED power supply, waterproof power supply, waterproof power supply, centralized power supply, power supply and other related products of high and new technology of mechanical industry technology enterprise.
Products are widely used in urban lighting, LED electronic screen, indoor decoration, advertising signs, digital tube, security monitoring, industrial automation and other industries. For all kinds of constant voltage, constant current and DC products provide power supply, low voltage electric current safe, green and healthy.
Products safe and reliable running, deeply user trust and respected, best-selling all over the country provinces and cities, are exported to Thailand, India, the United States, the Middle East.
"High quality, proper price, accurate delivery, best service" as the style of work, implement the spirit of "quality first, customer first" to the general partners to provide the best quality and service!
