Product Specifications
| Prod Model: |
BL-DL5*1W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
5*1W |
| Color Temperature: |
2500-6500k |
| IP Grade: |
IP44 |
| Net Weight: |
330g |
| Size: |
110*82mm |
| Life Time: |
50000hrs |
| Housing Color: |
Sliver |
| Warranty Time: |
2years |
| Sample/OEM Service: |
Available |
Product Description

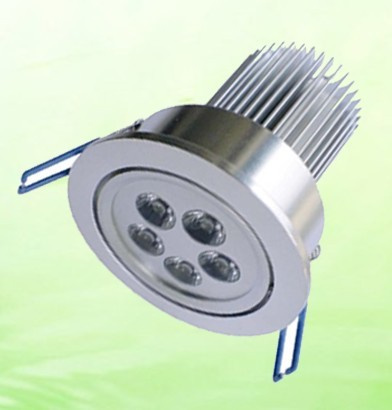

Name: LED Down Light/LED Ceiling Light
Model: BL-DL5*1W
Body operating temperature: ≤ 58 celsius
LED operating temperature: ≤ 65celsius
Ambient temperature: -25- 45 celsius
Luminous flux(lm): 400lm-cool white, 300lm-warm white
Luminous efficacy: 80lm/w- cool white, 60lm/w- warm white
Hole: Φ 105mm
Dimension of the external box(L * W * H): 47*48*34cm
Quantity (PCS): 40 PCS in a carton
Available in non-dimmable and dimmable
|
Brightled Lighting down light series |
|
Type |
LEDchip |
Power |
Lumens |
Beam angle |
Net weight(g) |
Dimension (mm) |
Color |
|
BL-DL3*1W |
Edison |
3W |
216lm |
30-60 |
230 |
90*60 |
W/WW/CW |
|
BL-DL4*1W |
4W |
288lm |
30-60 |
240 |
90*60 |
|
BL-DL5*1W |
5W |
360lm |
30-60 |
350 |
106*68 |
|
BL-DL7*1W |
7W |
504lm |
30-60 |
370 |
106*68 |
|
BL-DLYY10W-1 |
Brigelux |
10W |
720lm |
60 |
630 |
118*105 |
|
BL-DLYY10W-2 |
10W |
720lm |
60 |
880 |
150*155 |
|
BL-DL15W |
15W |
883lm |
30-60 |
1050 |
185*90 |
|
BL-DL25W |
25W |
1732lm |
30-60 |
1600 |
228*100 |
