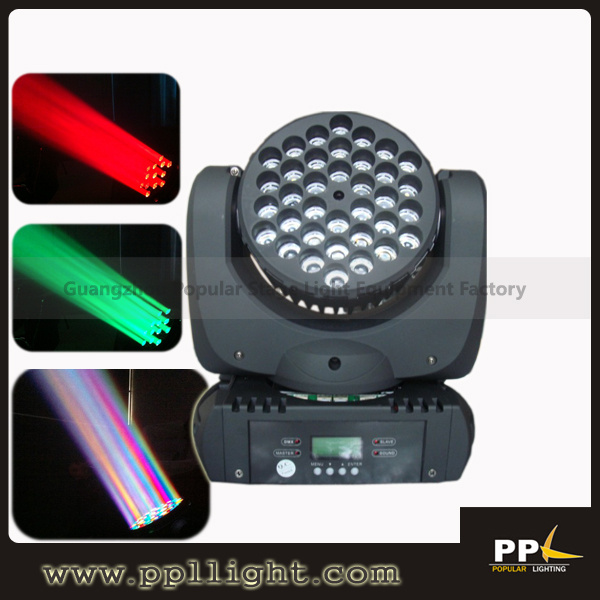

LED Moving Head Beam/LED 36X3w LED Beam Light

Product Specifications

Prod Model:	LED-M3605
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Type:	Compact and Lightweight LED Beam Fixture
LED Source:	36PCS CREE LEDs
Beam Angle:	8degree
Function:	Linear Dimmer with Flicker Free, Random Strobe
Using Place:	Stage, Theatre, Concert, Exhibition, Dance
N.W.:	5.5kgs
Dimensions:	152X265X310mm
Light Source:	LED
Strobe:	Electronic Strobe
Control Mode:	Dmx Signal Control
IP Rating:	IP20
Certification:	RoHS
Material:	PC Engineering Plastic
Emitting Color:	RGBW
Control Channel:	9/12/16
Voltage:	AC90V-245V

Product Description

Feature:
1. 36pcs 3W high brightness CREE LEDs
2. Compact & light weight and offers plenty of pro features
3. 50,000 hours life span for LEDs and low power consumption
4. Intelligent temperature sensor for LEDs(over heat protection)
5. High light output as 960LUX@ 7M at full

Technical Parameter ;
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 36pcs *3W CREE LEDs(R8,G10,B10,W8)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 15 DMX channels
Power Consumption: 160W
 60,000 hours life span for LEDs and low power consumption
Intelligent temperature sensor for LEDs(over heat protection)
High efficiency 8 degree optic lens
Color range with 16.7 millions additive RGBW colors
High light output as 960LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
15CH DMX channels
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto operation
High definition blue TFT LCD display
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
540° PAN and 250° TILT movement
Scan position memory, auto reposition after unexpected movement
Compact size with only 4.9KG body and 310mm in height
IEC power connector
45ºC max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Dimensions: 152(L)*265(W)*310(H)mm
Packing Dimensions:260(L)*320(W)*335(H)mm
Net Weight: 5.5kg
Gross Weight: 7.5kg

Voltage	AC90-240V, 50-60Hz
Light Source	CREE LED 36*3W (R8, G10, B10, W8), Extremely small, fast and powerful LED moving beam
Lifespan	60000 for every led, low power consumption
Fuse	F5A
Power consumption	160W
Beam Angle	8°
Color changing effect	Fabulous color mixing with highly and uniform distribution of brightness and light output
Pan/Tilt	X axis 630°, Y axis 240°  16bit precise positioning
Dimmer	0-100% smooth electronic linear adjustment with flicker free
Strobe	Electronic strobe with pulse and random effects, 1-20times/s
Program	Built in 8 programs with Macro effect
Channel	15CH
Control Modes	DMX512, Sound active, Auto and Master-slave
IEC power connector, Low noise and efficient FAN cooling system, High definition blue TFT LCD display, 3-Pin XLR DMX input/output
Packing Size	33*24*38cm
N.G/W	5.5/6.5kgs
IP rate	IP20
Certification	CE, RoHS
