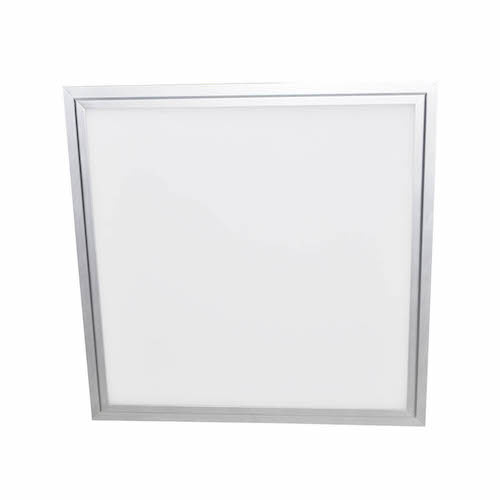

Model: KPL6*6-40W Light source: SMD 3528 led
Housing material: Al6063 Led quantity: 216 pcs
Base material: Aluminium alloy Input voltage: 100-240V AC
Frame color: silver/white Size: 595*595*10mm
Dimmable: optional Beam angle: 110
Standard: TUV, CE, RoHS Shape: square
Luminous flux:2969LM Ra: 80
Color temperature: 3000K/4000K/6000KAdvantage:
1. TUV/GS+Mark+CE+ERP+RoHS driver inside.
2. LM80 test passed led light source.
3. Customlised design and manufacturing.
Features
1. Energy-saving
2. Exquisite appearance, uniform & soft light
3. Universal input voltage: 100-240V AC
4. Durable construction & easy installation
5. Instant start, no flickering, no humming, no RF interference
6. With heat protection system, can work under unstable voltage
7. Special circuit design can avoid the breakdown caused by single faulty LED
8. Compliant with CE, TUV standard.
9. Environmental-friendly, lead-free, compliant with RoHS.
| Model | Power | Size | Voltage | LED | LED Qty | CCT | Ra | Lumens | Frame Color | Weight(KG) | Inner carton | Master caron |
| TPL3*3-20W | 20W | 295*295*10mm | 100-240V AC | SMD3528 | 144 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 1500lm | Silver/White | 0.9 | 320*33*365mm | 360*335*385mm(10PCS) |
| TPL6*3-20W | 20W | 595*295*10mm | 100-240V AC | SMD3528 | 144 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 1500lm | Silver/White | 1.73 | 620*33*365mm | 635*285*385mm(8PCS) |
| TPL6*6-36W | 36W | 595*595*10mm | 100-240V AC | SMD3528 | 216 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 2700lm | Silver/White | 3.32 | 620*33*665mm | 635*185*685mm(5PCS) |
| TPL6*6-40W | 40W | 595*595*10mm | 100-240V AC | SMD3528 | 216 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 2970lm | Silver/White | 3.32 | 620*33*665mm | 635*185*685mm(5PCS) |
| TPL12*3-40W | 40W | 1195*295*10mm | 100-240V AC | SMD3528 | 264 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 3060lm | Silver/White | 3.36 | 1220*35*380mm | 1235*190*400mm(5PCS) |
| TPL12*6-60W | 60W | 1195*595*10mm | 100-240V AC | SMD3528 | 432 | CW5750K±250K WW2900K±100K NW4100K±100K | 80 | 5100lm | Silver/White | 6.91 | 1220*35*655mm | 1235*85*675mm(2PCS) |
Established in 2008, Kinwax Technology Co., Ltd, who are dedicated to producing LED lights and keeping customers' needs in mind at all times.
Kinwax in LED lighting sector and has gained high market shares, accumulated good reputation and credibility in domestic market for years by offering excellent quality products with a reasonable price and prompt customer service. Kinwax equipped with the full production system and molding system, has been providing the complete service by efficient process management.
As the result of the overseas marketing since 2011, we have been exporting our products to 25 countries including East Asia, European, South American countries and we've always been attempting to satisfy customer demands by providing products with high quality and moderate price.
Encouraged by the successful LED lights business, kinwax has expanded its business scope through continuous investments in R&D to provide various other LED solutions. Our LED lights have been received well in the market in terms of the best efficiency and performance and we are preparing for the full-scale introduction of these products in the market.
If you are looking for a reliable source and good pricing then we should be your first option. We believe that the total LED lights solutions of us will make your business more successful.
