Product Specifications
| Prod Model: |
LCPL- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
LED |
| Appearance: |
Square |
| Housing Material: |
Plastic |
| Type: |
Embedded/Ceiling |
| Emitting Color: |
2700k~7000k |
| Certification: |
CE/RoHS |
| Beam Angle: |
110 Degrees |
| Voltage: |
AC90V~265V/50~60Hz |
| Base Material: |
Aluminum Alloy+(Optical) Acrylic |
Product Description

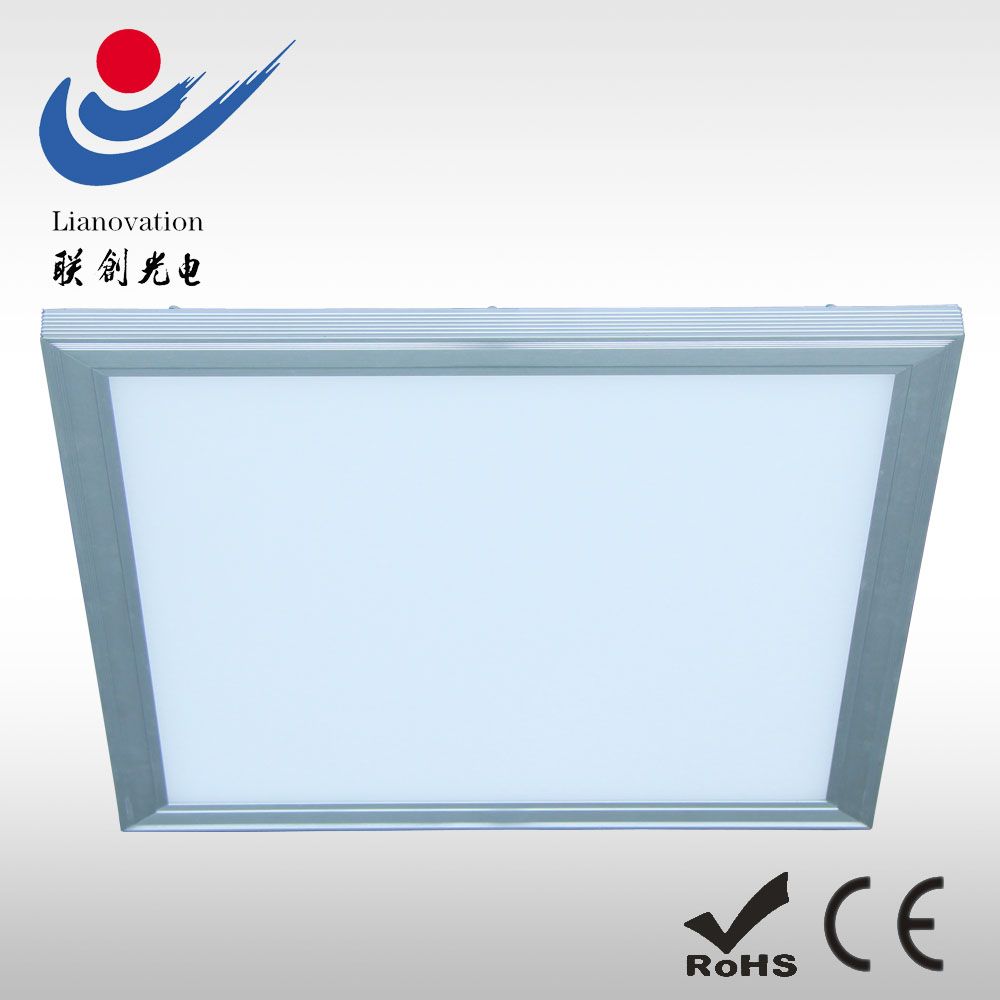

LED Panel Light
1. LED LUMEN OUTPUT >120LM/W
2. LIFE SPAN >30000 hours
3. Different dimension for your choice
4. Good energy-saving,
5. Reliability
6. Good heat releasing
7. Light can be dimmable
|
MODEL NO. |
LCPL-0303-20W LCPL-0603-20W |
|
POWER CONSUMPTION |
20W 20 W |
|
POWER FACTOR |
≥ 0.9 |
|
CRI |
≥ 70 |
|
COLOR TEMP |
2700K~7000K |
|
LUMEN OUTPUT |
2000LM 1800LM |
|
INPUT VOLTAGE |
Ac90V~265V/50~60HZ |
|
Operating Temperature |
-40º C-50º C |
|
MATERIAL |
Aluminum alloy +(Optical) Acrylic |
|
PROTECTION RATING |
IP40 |
|
DIMENSION |
L30*W30*H1.25CM L60*W30*H1.25CM |
|
MODEL NO. |
LCPL-0606-40W LCPL-1203-40W |
|
POWER CONSUMPTION |
40W 40 W |
|
POWER FACTOR |
≥ 0.9 |
|
CRI |
≥ 70 |
|
COLOR TEMP |
2700K~7000K |
|
LUMEN OUTPUT |
4000LM 3600LM |
|
INPUT VOLTAGE |
Ac90V~265V/50~60HZ |
|
Operating Temperature |
-40º C-50º C |
|
MATERIAL |
Aluminum alloy +(Optical) Acrylic |
|
PROTECTION RATING |
IP40 |
|
DIMENSION |
L60*W60*H1.25CM L120*W30*H1.25CM |
Founded in June 1999 and listed at Shanghai Stock Exchange in March 2001, Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is one of the leading hi-tech enterprises of National Torch Program, an industrialization base of National 863 Program results, and a National model engineering enterprise of "Industrialization of Indium Gallium Nitrogen LED Epitaxial Wafers and Chips", as well as the core enterprise of industrialization of Nanchang National Semiconductor Illumination Project, and the technological research center of Nanchang Semiconductor Lighting Engineering, as well as a national high and new-tech enterprises.
Our company's main business, which give first priority to LEDs and optoelectronic wire cables, range from LED lighting products, optoelectronic wire cables, relays, communication and information services.Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is a high tech enterprise which specializes in R&D, production, sales and services of both LED outdoor lights and LED indoor lights, such as LED street light, LED tunnel light, LED tube light, LED bulb light and LED spot light and so on.We have a strong presence in the LED lighting industry through our application of the latest technology, advanced production equipments and a strict quality management system.
We have been providing high-performance and reliable electronic components for China's aerospace industry, especially for "Shenzhou" series and "Tiangong" series spacecrafts, which met special requirements of "Shenzhou" series and guaranteed its successful launch by high-quality products and services.
According to the corporate tenet of "absorbing persons of outstanding ability, pioneering great optoelectronic cause" and holding on to the philosophy of "focus on lighting career, make low-carbon, green and environmentally friendly life", we have intensified technological innovation and stressed team-building in order to make our company to be domestic top-grade optoelectronic enterprise with international competing ability.
