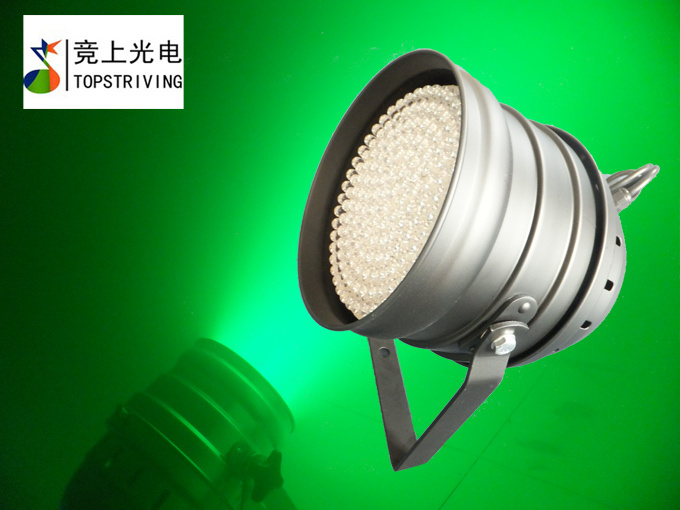

LED PAR 64 Light of Stage Effect Lighting with 168*10mm (LED PAR 64 168-10S)

Name: LED PAR 64 Light of Stage Effect Lighting with 168*10mm (LED PAR 64 168-10S)
Brand: china-manufacturer-directory.com
SKU: 728891335
Availability: InStock
Rating: 4.5 (137 reviews)

Supplier:	Guangzhou Topstriving Photoelectricity Technology Co., Limited
Price:	US $ 25.00/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CIF,FCA

Product Specifications

Prod Model:	LED PAR 64 168-10S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:	168 10mm High Mcd LEDs
Power Supply:	220-240V AC 50/60Hz
Power Consumption:	Max. 30W
Fuse:	250V 1.0A
DMX-Control-Channels:	8
DMX-512-Connection:	3-Pin XLR
Number Of LED:	168 High Output 10mm LED,R/G/B 56 PCS for Each
Flash-Rate:	Max. 10 Hz
Dimensions:	310X270X230mm
Warranty:	2 Years
Waterproof:	Not Waterproof
Electric Current Type:	AC
IP Rating:	IP20
Emitting Color:	RGB
Certification:	RoHS
Type:	PAR64
Diffuser:	Tempered Glass
LED Chips:	Epistar
Shell Material:	Short Silver/Black Housing
Life:	100000hrs
Input Voltage:	AV 90-240V 50/60Hz
Power:	10mm

Product Description

LED PAR 64 Light of Stage Effect Lighting with 168*10mm(LED PAR 64 168-10S)

Technical Specifications:

(1) DU hanging brackets for eary floor standing;

(2) Multi-voltage operation: AC 120-230V, 50-60Hz, full Master / Slave operation in any operational mode;

(3) Electronic Dimming, color strobr effect and long life;

(4) Operation long silver/ black housing Par 64, with 168 10mm high MCD LEDs(56Red, 56Green, &56 Blue LEDs;

(5) Smooth RGB color mixing, low heat, long life LEDs(100, 000hrs. );

(6) Operational Modes: DMX 512 protocol, Sound Active, Auto, master / slave;

(7) Beam Angle: 30 degrees;

(8) Color strobe effect Uses 8 DMX Channels, Stand Alone, Master/ Slave;

(9) Linkable via 3-pin XLR cable;

(10) Electronic Dimming: 0-100%

(11) Dimensions: 300*270*240mm;

(12) Weight: 2.0kgs.

Function of the control channels:
Function of the control channels:
8channels
Channel 1	Red from smal to big brightness(dimming)
Channel 2	Green from smal to big brightness(dimming)
Channel 3	Blue from smal to big brightness(dimming)
Channel 4	Master dimmer from smal to full brightness
Channel 5	Strobe from slow to fast
Channel 6	Dimmer, color macro
Channel 7	Dimmer, increasing brightness, then decreasing brightness, colors following one by one
Channel 8	Running speed adjustments
DELIEVER TERMS
Packing	Carton package or As customer required
Trade	FOB /EXW
Port	GuangZhou China
Certification	CE ROHS
Payment Terms	T/T, Westerm Union, Paypal
Shipping method	DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
Delivery time	40 HQ container within 4 weeks
Brand Name	Topstriving
Origin	GuangZhou China
Producting Time	15-20 days
OEM OR ODM Service	Accept
MOQ:	50 PCS
Warranty Time	Fully 3 year
