Supplier: | Shunde Hophenc Electronic Co., Ltd. |
---|---|
Price: | US $ 1.4-1.5/Piece |
Min Order: | 50/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | HFX-A58 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Thickness: | 0.8-1.0mm ,1.2mm,1.5mm ,2.0mm |
Length: | 0.3-1.2m ,1.5m |
Thermal Conductivity: | 0.8-1.0 |
Surface Technique: | OSP , Lead Free HASL, Lead HASL ,OSP\ Rot |
Price: | Competitive Price |
Quality: | High Quality |
Delivery: | 5-7 Days After Placing an Order |
Capacity: | 20000 Square Meter Per Month |

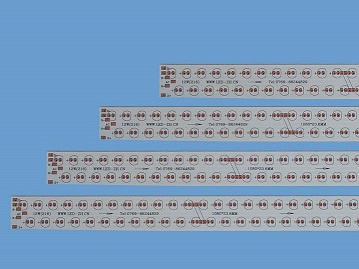

Type: | Rigid Circuit Board |
Dielectric: | Resin |
Material: | Aluminum PCB |
Flame Retardant Properties: | 94 V0 |
Model: | A002 |
Brand: | Hophenc |
Items | Specifications |
Material | aluminum base, copper base, FR-4, CEM-1 |
Finish Board Thickness | 0.2mm-5.0 mm (8mil-197mil) |
Board thickness tolerance | ±0.1mm |
Copper Thickness | H/0 oz, 1/0 oz, 2/0 oz, 3/0 oz; H/H oz, 1/1 oz, 2/2 oz, 3/3 oz |
Numbr of Layer | single-side LED PCB, double sides LED PCB |
Max finished Size | 2000mm*450mm |
Surface Finish | HASL(free lead), ENIG(Electroless nickel immersion gold), immersion silver, OSP |
Thermal conductivity | 0.6 0.8 1.0 2.0 3.0 4.0 5.0 |
Min line width | 0.2mm(8mil) |
Min line spacing | 0.2mm(8mil) |
Min hole diameter | 0.2mm |
Min pad size | 1.2mm |
Insulating layer thickness | 50 75 100 125 150 (μm) |
Solder Mask Color | White/Green/Black/Matte Black/Red/Golden Yellow |
Letter Color | White/Black/Green |
Hole position tolerance | ±0.05mm |
Metallic hole diameter tolerance | ±0.076mm |
Twist and bend | ≤0.7% |
Outline Tolerance | ±0.1mm/4mil (CNC routing); ±0.15mm/6mil (tooling punching) |
Shaping | V-cut, tooling punching, CNC routing, |
Solder strength | >6H |
Thermal Shock | 280°C 10Second 3times |
Flame retardant | 94V-0 |
Testing | 100% computer open/short circuit test, Impedance test, Thermal shock Test, Solderability Test, metallographic microsection analysis |
File format | gerber, protel, power PCB, PADS2007, PCB doc, Auto CAD, sample |
